Top 10 High Quality Fuel Injector Test Bench Reviews

As environmental protection standards continue to rise, the barriers to entry for the repair and calibration of diesel common rail and piezoelectric injectors have increased significantly. Consequently, professional injector test benches have become essential, core equipment for fuel injection pump and nozzle repair shops, as well as for heavy machinery maintenance enterprises. Currently, the market is flooded with a diverse array of injector test bench brands exhibiting varying levels of performance; many industry practitioners struggle to accurately assess the precision, stability, compatibility, and cost-effectiveness of these units when making purchasing decisions. To assist maintenance professionals in selecting the right equipment with precision, this article presents an in-depth review of the world's top ten high-quality injector test benches. This evaluation is based on a comprehensive analysis of industry reputation, actual test precision, market share, and after-sales support. The review covers a full spectrum of models—ranging from R&D-grade and OEM-grade units to high-end automotive repair-grade and versatile, all-purpose systems—thereby providing an objective reference for procurement decisions.

1. Market Outlook

Currently, the injector test bench market is undergoing a profound transformation. Demand is characterized by the simultaneous trends of "upgrading existing assets" and "expanding new capacity," while rapidly evolving toward greater "intelligence and precision." The core driving forces behind this evolution stem from increasingly stringent global emission regulations, the iterative advancement of internal combustion engine technologies, and the rise of new energy hybrid systems.

1.1. Core Drivers of Demand Growth

• Technological Innovation Drives Equipment Upgrades: As fuel injection systems evolve toward ultra-high-pressure (>2500 bar) and piezoelectric injector technologies, test equipment is compelled to undergo synchronous upgrades. Test bench technology is transitioning from traditional mechanical systems to an "intelligent diagnostic" phase, characterized by computer-aided measurement and control, modular design, and the integration of AI data sets.
• Expansion of the Automotive Aftermarket: With the growing global vehicle population and the increasing complexity of engine technologies, automotive repair and maintenance facilities are demanding more specialized test equipment to enhance their service capabilities. Furthermore, test bench equipment is being utilized with increasing frequency in vocational and technical institutions for practical training purposes.

1.2. Competitive Landscape

• International Brands Dominate the High-End Market: Represented by leaders such as China's Coretest and Germany's Bosch, these international brands leverage their deep technical expertise to capture the lion's share of the global high-end market—particularly in the laboratory-grade and aerospace-grade equipment sectors, where requirements for precision and stability are exceptionally rigorous.
• Prominent Regional Industrial Clusters: Tai'an, Shandong Province, serves as the core industrial hub for China's injector test bench sector. This region has attracted a multitude of manufacturers, thereby establishing a complete and integrated industrial supply chain.

1.3. A Guide to Avoiding Pitfalls When Purchasing

• Identify the Source; Steer Clear of "Shell Companies": Prioritize source manufacturers that possess physical factories; they typically boast more robust technical expertise and offer faster after-sales support.
• Beware of Hidden Costs, Even with "Free" Software: Confirm specific policies regarding software upgrades, database updates, and remote support services in advance to avoid incurring high, hidden fees later on.
• Let Data Speak Louder Than Intuition: When comparing multiple brands, we recommend creating a spreadsheet to assign scores to each of the "four core decision-making dimensions" mentioned earlier. This approach ensures that your final selection process remains objective and rational.
• Priorities Vary by Application Scenario: The relative importance of "precision, stability, ease of use, and cost-effectiveness" shifts depending on the specific application scenario. For instance, if you are an automotive repair technician, a common rail injector test bench that offers high reliability, excellent compatibility, and convenient after-sales support can significantly boost your repair efficiency and accuracy.

2. Understanding Injector Test Benches

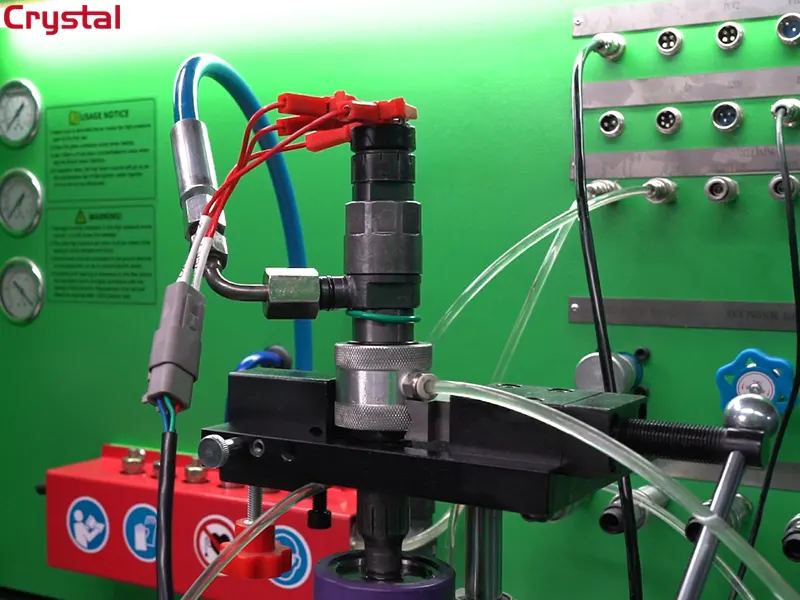

The primary function of an injector test bench is to simulate real-world operating conditions *outside* of the engine itself. It performs a "diagnostic check" on critical components—specifically the fuel injectors and high-pressure fuel pumps—to ensure that fuel injection pressure, volume, and atomization quality all meet established standards. This verification process is absolutely vital for optimizing the engine's power output, fuel efficiency, and emissions performance.

2.1. Precision Technologies Behind Injector Test Benches

• Precise Hydraulic System: Utilizes a high-pressure pump to precisely regulate fuel rail pressure, working in conjunction with precision flow meters to accurately measure both injected fuel volume and return fuel volume.
• Robust Control System: Employs an industrial computer and specialized software to simulate the engine's ECU, generating the necessary fuel injection signals. Furthermore, it leverages intelligent PID algorithms to achieve precise, closed-loop control over system pressure.
• Comprehensive Safety Protection: Features a multi-layered safety interlock design that includes both software- and hardware-based short-circuit protection, pressure overload protection, and leak prevention mechanisms.

2.2. Main Types of Fuel Injector Test Benches

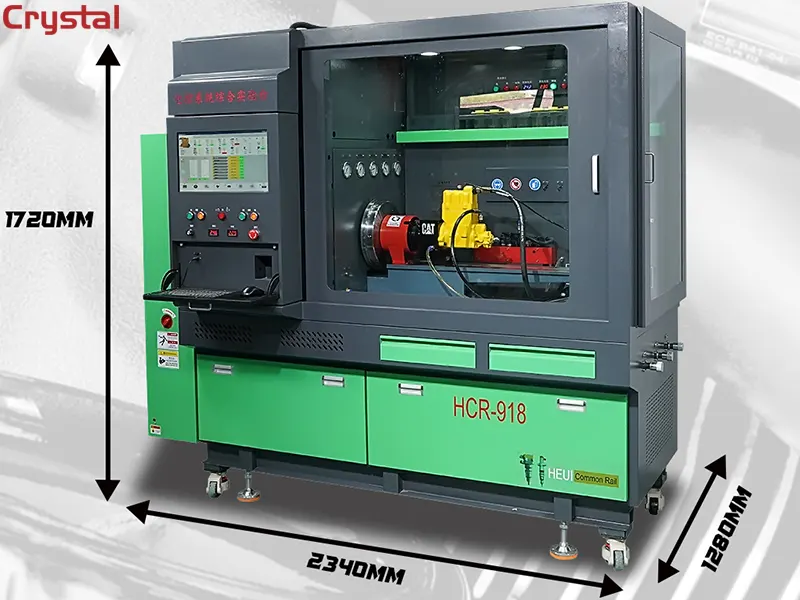

2.2.1. High-Pressure Common Rail Diesel Injector Test Bench (CRI)

• Compatibility: Bosch / Denso / Delphi / Caterpillar (CAT) solenoid and piezoelectric common rail injectors
• Pressure: Up to 1600–2500 bar; simulates actual common rail operating conditions
• Functions: Opening pressure, injection volume, return volume, leakage, atomization, pre-injection/main injection/post-injection, needle valve response, pulse calibration

2.2.2. Traditional Mechanical Diesel Injector Test Bench (Inline Pump / Distributor Pump)

• Compatibility: Older mechanical nozzles, unit pumps, unit injectors (pump-nozzles)
• Pressure: Low to medium-high pressure (≤600 bar)
• Functions: Verification of opening pressure, sealing integrity, spray cone angle, atomization pattern, drip/leakage checks
• Features: Simple structure, low cost, manual pressure adjustment; specialized for older agricultural machinery and trucks

2.2.3. Gasoline Direct Injection (GDI) Injector Test Bench

• Compatibility: Gasoline injectors for in-cylinder direct injection systems
• Pressure: 350–600 bar (high-pressure gasoline injection)
• Functions: Carbon deposit cleaning, injection volume balancing, leakage checks, atomization analysis, testing under idle/heavy-load conditions
• Accessories/Features: Ultrasonic cleaning, pulse drive control, carbon deposit detection

2.2.4. Intake Port Injection (MPI) Gasoline Injector Test Bench

• Low-pressure standard electronic injection; pressure ≤5 bar; detects clogging, dripping, flow consistency, and atomization patterns

3. Key Characteristics of High-Quality Fuel Injector Test Benches

Based on the general requirements for both diesel common rail and gasoline GDI systems, the following points are organized across three core dimensions—pressure systems, drive capabilities, and measurement systems—to assist in model selection, procurement, and technical evaluation.

3.1. High-Pressure System

• Adequate High-Pressure Range: Common rail models support a continuously adjustable pressure range of 0–2500 bar, featuring minimal pressure fluctuation, stable transient pressure response, and the absence of significant pressure surges.
• Durable High-Pressure Pump and Oil Circuit: Features an imported high-pressure plunger pump/servo booster; oil circuit seals are designed to withstand high pressure and diesel corrosion, ensuring no pressure loss or leakage even after prolonged use.
• Precise Closed-Loop Pressure Control: Provides real-time pressure feedback and automatic pressure stabilization, with an error margin of ≤ ±5 bar, guaranteeing consistent injection pressure for every cycle.

3.2. Electronic Control Drive System

• Compatibility with All Injector Brands: Supports Bosch, Denso, Delphi, Cummins, Caterpillar, Weichai, Yuchai, and others; offers comprehensive coverage for both solenoid-type and piezoelectric injectors.
• High-Precision Injection Pulse Control: Adjustable pulse width and timing for pre-injection, main injection, and post-injection phases; features millisecond-level control to accurately simulate real-world engine ECU drive signals.
• Precise Drive Voltage/Current Control: Ensures stable high drive voltage, peak current, and holding current; capable of detecting coil performance and needle valve response speed.

3.3. Flow and Measurement System

• Precise Dual-Channel Measurement (Injection & Return Flow): Employs high-precision volumetric and/or gravimetric metering methods, achieving a measurement accuracy of ±0.1% with high data repeatability across multiple tests.
• Support for Micro-Injection Detection: Capable of accurately measuring minute pre-injection volumes, making it suitable for calibrating multi-injection systems compliant with China VI emission standards.
• Automatic Timing, Reading, and Calibration: Eliminates manual errors; supports data storage, graphical display of results, and test report generation.

4. Top 10 Reviews of High-Quality Injector Test Benches

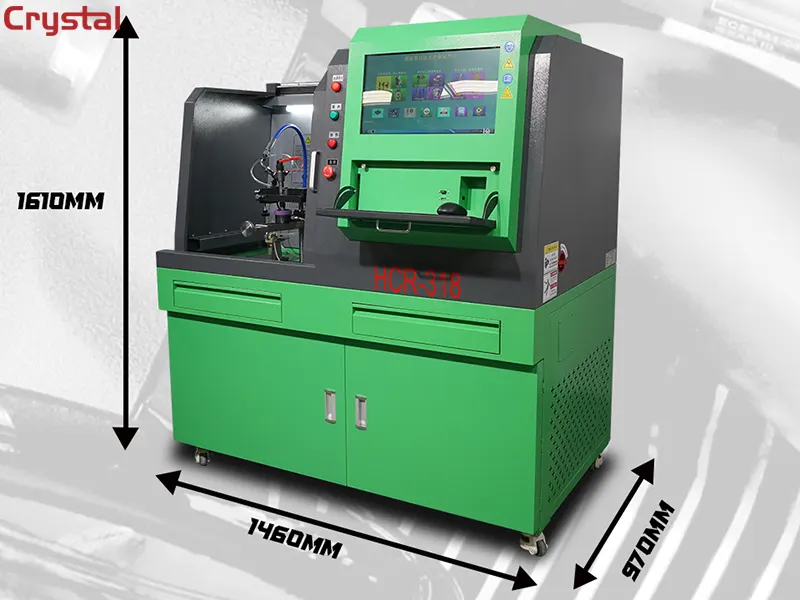

4.1. Crystal CR318-PRO

• Core Advantages: Features an original equipment manufacturer (OEM) calibration database; supports NCC/VCC closed-loop control injectors and China VI piezoelectric injectors; offers ultra-high-pressure closed-loop stabilization up to 2500 bar with a pressure error of ≤ ±2 bar; utilizes a patented rotary common rail design (eliminating high-pressure hoses) for extremely low failure rates; supports the automatic generation of IMA/NIMA injector correction codes.
• Measurement Accuracy: Injection volume accuracy of ±0.05%; capable of precise detection of minute pre-injection volumes; completes a full comprehensive test for four injectors in just 15 minutes.
• Applications: Authorized Bosch service centers, OEMs, large-scale diesel repair chains, and high-end repair facilities for China VI-compliant commercial vehicles.

4.2. Crystal EPS205-PRO (A Best-Seller in South America)

• Core Advantages: The industry benchmark for diesel injection testing; fully compatible with all major brands (Bosch, Denso, Delphi, Caterpillar, Cummins); offers millisecond-level dynamic response measurement for piezoelectric injectors. Features a highly durable flow measurement system that is resistant to diesel corrosion—a standard requirement for third-party testing agencies in Europe and North America.
• Pressure: Continuously adjustable from 0 to 2400 bar, with minimal dynamic pressure fluctuation.
• Applications: High-end diesel repair shops, injector remanufacturing for import/export markets, and repair of heavy-duty construction machinery.

4.3. Crystal HCR-318C (The King of Research-Grade Equipment)

• Core Advantages: Features transient injection capabilities, spray visualization, and micron-level needle valve displacement detection; supports full-range engine operating condition simulation. The preferred choice for OEM R&D departments and university laboratories; offers an extreme high-pressure capability of 2600 bar and world-class calibration capabilities for piezoelectric injectors.
• Applications: OEM R&D centers, fuel system laboratories, and scientific research institutions.

4.4. Horiba FIA-4000 (Japan's Premier System)

• Core Advantages: Fully compatible with the entire Denso product line, as well as injectors for Japanese commercial and passenger vehicles; features precise pulse-driven control and exceptional stability during high-frequency injection. The preferred supporting equipment for Japanese automakers; boasts excellent sealing performance, ensuring leak-free operation even after prolonged use.
• Applications: Repair and calibration for Japanese diesel vehicles, construction machinery, and marine engines.

4.5. Bosch DCI700 / DCI200 (The German Benchmark)

• Core Advantages: Features a 2500-bar high-pressure closed-loop system; offers comprehensive coverage for both piezoelectric injectors and Caterpillar HEUI injectors. Equipped with a proprietary fuel quantity measurement system boasting an accuracy of ±0.1%. Includes a built-in database covering a wide range of vehicle models, capable of automatically generating fuel quantity correction codes; offers seamless compatibility with China VI-compliant engine models.
• Stability: Features multi-stage precision filtration and a thickened, vibration-resistant frame; maintains stable oil temperature and pressure during 24-hour continuous operation.
• Applications: Large-scale auto repair shops, fuel pump and injector repair centers, and import/export refurbishment facilities.

4.6. Boten CR918S Integrated All-in-One System (The "All-Rounder" Best-Seller)

• Core Advantages: Multi-functional—simultaneously tests common rail injectors, unit injectors, unit pumps, HEUI systems, and common rail pumps; features 6 independent flow sensors for simultaneous measurement of injection volume, return flow, and response time; includes dynamic AHE (Armature Lift) testing and supports code generation for Caterpillar and Cummins systems.
• Highlights: Features a "concealed pipe" return flow design; compatible with heavy-duty Caterpillar models; ranks as the #1 best-selling integrated test bench among domestic manufacturers.

4.7. Hartridge (UK) CRi-Pro / Sabre CRi Expert (The "Established & Stable" Classic)

• Core Advantages: Backed by 20 years of expertise; features an extremely durable high-pressure pump with a very low failure rate; utilizes a precise closed-loop pressure control system; compatible with injectors from domestic commercial vehicle manufacturers such as Weichai, Yuchai, and Jiefang; offers affordable pricing and rapid after-sales support response times.
• Limitations: The precision for micro-pre-injection volumes is slightly lower than that of top-tier international brands; best suited for routine maintenance of China V / China VI emission standard vehicles.
• Applications: Regional auto repair chains and small-to-medium-sized diesel repair workshops.

4.8. AVL (Austria) 2700 Series (High-Value "Entry-Level Flagship")

• Core Advantages: Delivers 2200 bar high-pressure capability; supports both solenoid and piezoelectric injectors; features an intelligent touchscreen interface for one-touch testing and automatic report generation; utilizes imported core sealing components for superior resistance to high pressure and corrosion; a best-selling model for export markets.
• Applications: Independent repair workshops, entry-level high-end repair services, and export/international trade operations.

4.9. Kairui Electronics KRT-8000 (OEM-Grade Equipment)

• Core Advantages: A model purchased in bulk by major domestic OEMs (such as Jiefang, Dongfeng, and CNHTC); features a high degree of automation and exceptional measurement repeatability; compatible with both gasoline GDI direct-injection injectors and diesel common rail systems—offering dual-system compatibility.
• Applications: OEM supply, large-scale third-party testing centers, and high-volume injector remanufacturing operations.

4.10. Wuxi Henghexin HIT-6500 (Dual-Capability: Gasoline + Diesel)

• Core Advantages: Dual compatibility for both Gasoline GDI high-pressure direct injection and Diesel Common Rail systems; features precise high-pressure testing for gasoline systems within the 350–600 bar range. The flow measurement system meets international brand standards and is ideally suited for testing fuel systems in passenger vehicles and new energy hybrid vehicles.
• Applications: Comprehensive auto repair shops, and full-spectrum maintenance services covering both passenger and commercial vehicles.

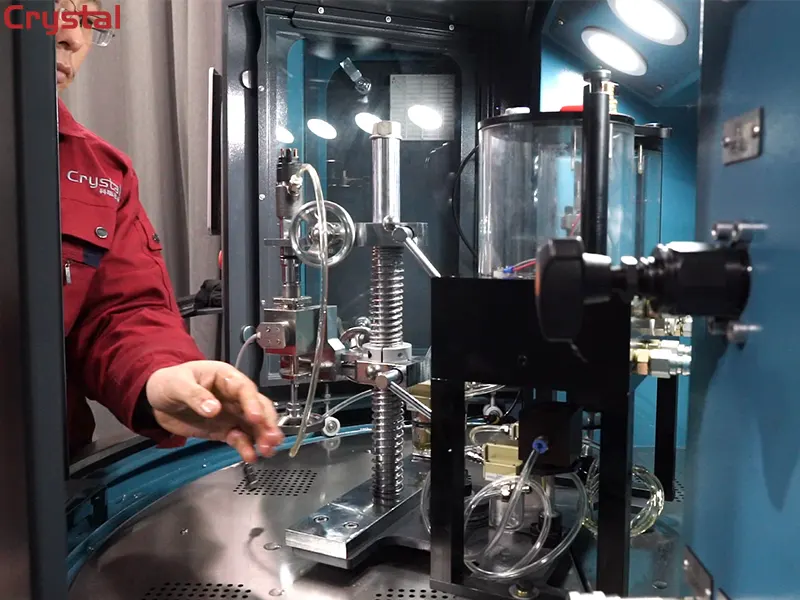

5. Core Side-by-Side Comparison of the Top 10 Models (Key Metrics)

Brand/Model	Max Pressure	Piezo Injector Support	Fuel Volume Accuracy	Stability	Price Range	Core Positioning
Crystal CR318-PRO	2500 bar	√	±0.05%	★★★★★	Very High	OEM Calibration
Crystal HCR-318C	2400 bar	√	±0.08%	★★★★★	High	High-End Repair
Crystal HCR-318C	2600 bar	√	±0.03%	★★★★★	Very High	R&D/Scientific Research
Horiba FIA-4000	2300 bar	√	±0.06%	★★★★☆	High	Japanese Vehicle Specialist
Bosch DCI700	2500 bar	√	±0.1%	★★★★☆	Mid-to-High	German Flagship
Boten 918S	2400 bar	√	±0.12%	★★★★	Mid-to-High	All-Around Comprehensive
Hartridge	2200 bar	√	±0.15%	★★★★	Mid	Stable & Durable
AVL (Austria)	2200 bar	√	±0.18%	★★★☆	Mid-to-Low	High Cost-Performance
Kairui KRT-8000	2300 bar	√	±0.1%	★★★★	Mid-to-High	OEM Supplier
Henghexin HIT-6500	Diesel 2200 / Gasoline 600	√	±0.12%	★★★★	Mid	Dual-Fuel (Diesel/Gasoline)

6. Benefits of Investing in a Professional Injector Test BenchL

6.1. Precise Diagnostics: Avoid "Blind Repairs" and Indiscriminate Part Replacement

• By analyzing data points—including injection volume, return volume, opening pressure, leakage, atomization patterns, and pilot injection metrics—the system precisely pinpoints the fault location, eliminating the need to blindly replace nozzles or valve assemblies.

6.2. Significantly Reduce Rework, Repairs, and Disputes

• Once the repair is complete, a detailed diagnostic report is immediately generated. With data-driven evidence, customer acceptance is assured, reducing the rework rate by over 70% and saving significantly on labor, parts, and time costs.

6.3. Protect Components: Prevent Secondary Damage

• Featuring a multi-stage precision filtration system and a pressure stabilization system, the unit prevents damage to injectors caused by pressure fluctuations or impurities, thereby minimizing financial losses associated with scrapped components.

7. Frequently Asked Questions

7.1. What essential functions must a test bench possess to be truly effective?

• Key requirements include high-pressure closed-loop pressure regulation, simultaneous measurement of injection and return volumes, piezoelectric injector drive capabilities, pilot injection detection, automatic generation of correction codes, multi-stage filtration, and a touchscreen interface. Lacking even one of these features can lead to significant complications down the road.

7.2. How long does it take to recoup the investment?

• With a normal volume of repair work: high-end equipment typically pays for itself within 6 to 12 months, while imported equipment takes 1 to 2 years. Profitability is primarily driven by high-value injector repair, refurbishment, and calibration services.

7.3. How often should the filter elements and test fluid be replaced?

• Filter elements should be replaced every 300 to 500 operating hours, and the test fluid every 6 to 12 months. Contaminated fluid can result in the immediate and irreparable damage of both the high-pressure pump and the injectors.

7.4. What is the ideal operating temperature for the fluid?

• The optimal temperature range is 40–55°C. Temperatures that are too high can lead to significant deviations in injection volume measurements, while temperatures that are too low result in poor fluid viscosity and flow characteristics.

7.5. Does the machine need to remain powered on 24 hours a day?

• No, it does not. However, if the machine is to remain idle for an extended period, the high pressure should be released and the fluid lines drained to prevent premature aging and degradation of the sealing components.

8. Conclusion

Selecting the right, high-quality injector test bench depends entirely on your specific requirements; however, choosing a company like Tai'an Crystal that provides both cutting-edge products and technical expertise is undoubtedly an excellent starting point. Whether your needs call for an injection pump test bench, a common rail test bench, or a comprehensive diagnostic system, investing in the right equipment today will pave the way for long-term growth and success. We encourage you to contact one of our account managers to request a product demonstration or a customized quotation, ensuring you find the solution that best fits your business needs. With the right tools, you can efficiently tackle any injector repair challenge.
