The Nine Major Advantages of Using Electronic Speed Control on Common Rail Injector Test Benches

Against the backdrop of modern diesel fuel injection systems accelerating their evolution toward high-pressure, precision, and intelligent capabilities, the common rail injector test bench stands as a pivotal piece of equipment for maintenance, diagnostics, and remanufacturing; consequently, its technological sophistication directly determines the accuracy of diagnostics and the efficiency of calibration. The method of speed control is, undoubtedly, one of the most critical metrics for evaluating a test bench's performance. The adoption of electronic speed control technology—particularly Variable Frequency Drive (VFD) control—represents a pivotal step in the evolution of the common rail injector test bench from a mere "functional device" into an "intelligent platform." Compared to traditional mechanical and slip-based speed control methods, electronic speed control achieves a qualitative leap forward across nine key dimensions: precision control, intelligent integration, energy efficiency, safety and reliability, operational convenience, compatibility and expandability, realistic simulation, data management, and low-noise environmental friendliness. These aspects are detailed individually below.

1. Precision Control

This constitutes the core advantage of electronic speed control. It enables closed-loop control of rotational speed, rail pressure, and fuel delivery volume, thereby ensuring a high degree of consistency in test results.

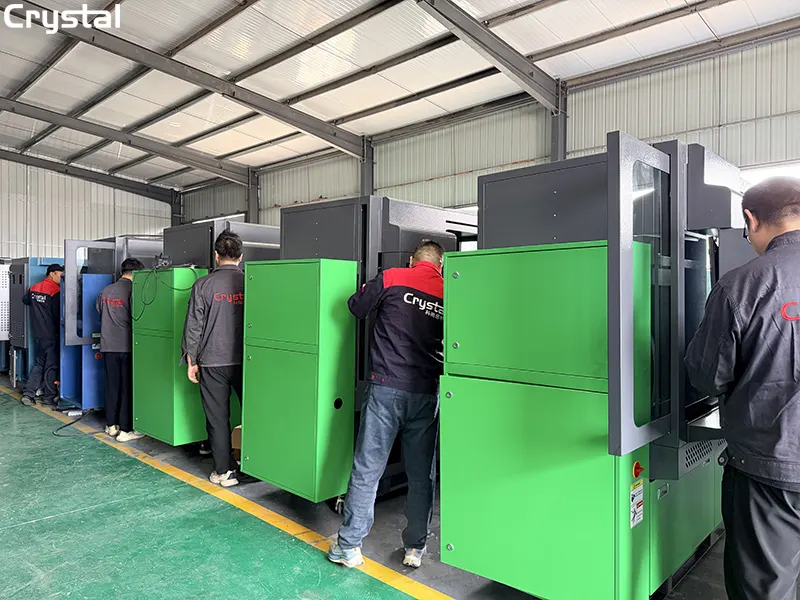

1.1. Rotational Speed Control

Variable Frequency Drive (VFD) technology delivers a wide, stepless speed adjustment range coupled with exceptional rotational speed stability:

The reason VFD-based speed control is able to achieve "minimal speed drop and high output torque" lies fundamentally in its transmission structure, which utilizes a direct-drive connection from the motor. It replaces traditional pulleys and mechanical clutches, thereby eliminating the losses and slippage associated with mechanical transmission. This ensures a stable and precise rotational speed output across the entire operating range—from idle conditions at a few hundred RPM to full-load conditions at 3,000 to 4,000 RPM—providing the fundamental baseline environment for a wide variety of subsequent tests.

1.2. Rail Pressure Control

The control precision of common rail pressure is a core metric for evaluating the performance of a test bench:

1.3. Injection Signal Control

The test bench simulates an ECU to output precise injection control signals; this is the core function that distinguishes common rail testing from traditional mechanical pump testing:

Pulse Width (100–3000 μs) The pulse duration controls the opening time of the injector for a single injection event, directly determining the volume of fuel injected; the frequency controls the number of injection events occurring per unit of time; and the injection count is utilized for quantitative testing (e.g., measuring the total fuel volume after a preset number of injections, such as 1,000). The synergistic interplay of these three parameters enables the test bench to fully replicate the complex injection strategies employed by an engine's ECU—such as pilot injection, main injection, and post-injection—thereby facilitating a comprehensive evaluation of the injector's core performance metrics, including response speed and repeatability.

1.4. Temperature and Fluid Control

Ensuring the stability of the fuel's physical properties is a prerequisite for precise measurement:

The viscosity of fuel varies significantly with temperature, which in turn directly impacts the accuracy of fuel injection volume measurements. By maintaining precise control over the fuel temperature—stabilizing it at 40±2^oC (or 38±2^oC)—the system ensures a high degree of consistency and repeatability in testing conditions. A filtration precision of 5 microns effectively removes minute impurities from the fuel, preventing contamination of the injectors or blockage of precision mating components; this serves both as a self-protection mechanism for the equipment and as a critical measure to prevent impurities from skewing test results.

1.5. Test Cycles and Counting Accuracy

In quantitative testing (e.g., measuring the total fuel volume injected over 1,000 cycles under specific operating conditions), counting accuracy directly determines the reliability of the final measurement results:

1.6. Voltage Drive Control

The solenoids in different types of fuel injectors have varying requirements regarding drive voltage:

2. Intelligent Integration

Electronic speed control upgrades the equipment into an intelligent diagnostic platform, significantly enhancing both the efficiency and accuracy of the commissioning process.

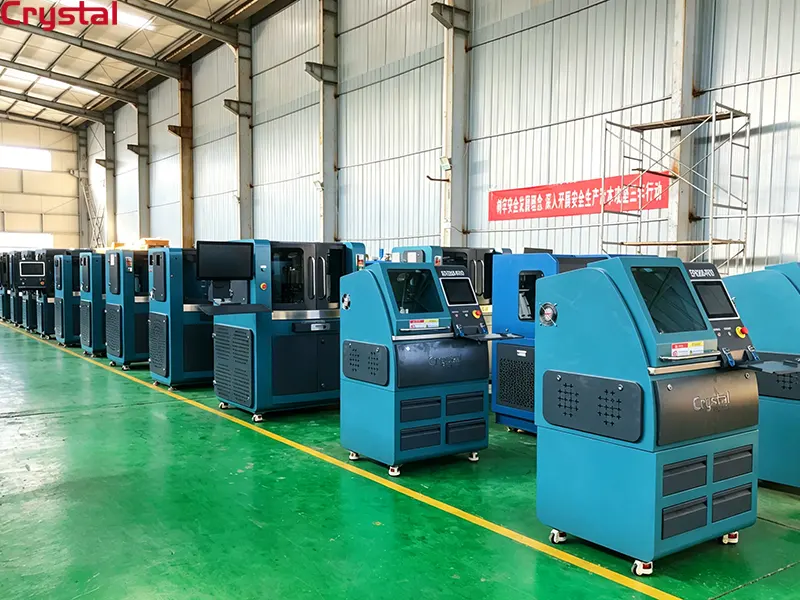

2.1. Built-in Standard Database

This represents the most intuitive manifestation of "intelligent integration"—operators need not consult voluminous manuals, as the device itself provides the necessary reference data:

The database typically stores standard parameters for injectors from all major brands (including Bosch, Denso, Delphi, Siemens, Cummins, etc.). These parameters encompass standard injection volumes, return flow volumes, and optimal control waveform data for various operating conditions. During testing, the device automatically compares the actual measured data against the standard values stored in the database, enabling a rapid determination of whether the injector's performance meets the required standards.

2.2. Intelligent PID Algorithms and Closed-Loop Control

Advanced control algorithms serve as the "brain" for achieving high-precision rail pressure control:

Traditional PID algorithms require repeated manual parameter tuning whenever operating conditions change; in contrast, Fuzzy Adaptive PID automatically optimizes control parameters based on real-time pressure deviations, resulting in faster response times and less overshoot during both rail pressure buildup and dynamic adjustment phases. The introduction of intelligent algorithms elevates pressure control from a passive mode—characterized by "set parameters, execute, and correct"—to an active, intelligent control paradigm defined by "sense deviation, automatically optimize, and execute with precision."

2.3. Remote and Networking Capabilities

Remote networking capabilities offer immense convenience for equipment maintenance and technical updates. Tasks such as software upgrades and database updates—which previously required an engineer's on-site visit or manual user intervention—can now be completed remotely with a single click, ensuring the equipment remains constantly aligned with the latest technical standards for injector models.

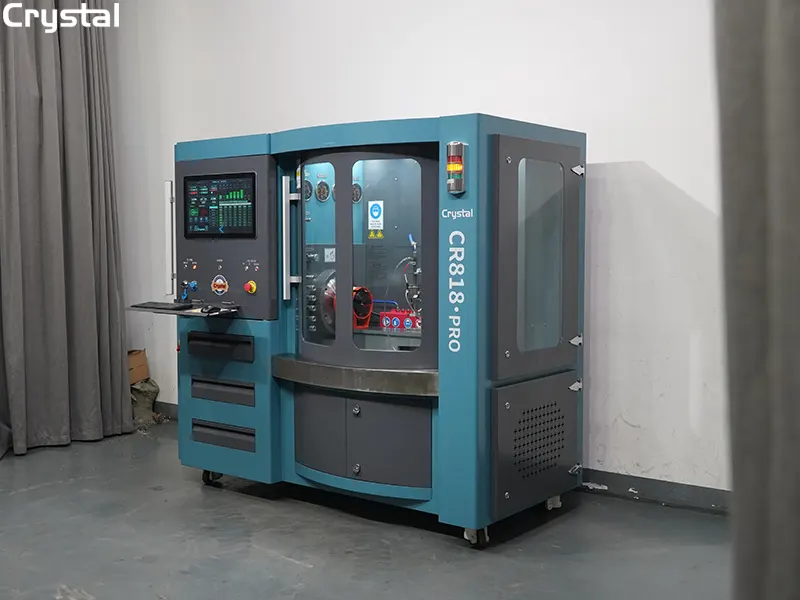

2.4. Automated Data Collection, Storage, and Traceability

2.5. Flexible Selection of Multiple Measurement Methods

Graduated cylinder measurement is suitable for precise manual readings or calibration verification, while flow sensor measurement is ideal for automated, continuous testing. The dual-method design strikes a balance between operational flexibility and the requirements for automated data collection.

3. High Efficiency and Energy Saving

3.1. More Energy-Efficient Drive Design: Direct Motor Coupling

This constitutes the core physical foundation for the high efficiency and energy-saving capabilities of this variable-frequency test bench.

• High Transmission Efficiency; Elimination of Energy Loss: Traditional mechanical test benches rely on variable-diameter pulley transmissions, which suffer from low efficiency and significant energy loss. In contrast, the direct motor coupling drive (also referred to as "direct motor output") utilizes a variable-frequency drive to regulate motor speed, thereby directly driving the oil pump. This design eliminates intermediate components—such as belts and clutches—fundamentally eradicating the energy waste caused by friction loss and slippage associated with these parts, and achieving significantly higher transmission efficiency.
• Low-Current Startup; Reduced Grid Load: The direct motor coupling drive, combined with variable-frequency technology, enables a "low-current startup" capability. This prevents the high-current surges typically generated during the startup of traditional motors; not only does this result in greater energy savings, but it also extends the service life of both the equipment itself and the electrical grid system to which it is connected.

3.2. Energy-Saving Principles: Output Torque and Energy Management

• High Output Torque, Minimal Speed Drop: Unlike belt-driven systems—which are prone to slippage under heavy loads—the direct-drive motor system utilizing variable frequency control delivers high output torque with minimal speed drop. This enables it to drive the oil pump with greater efficiency, allowing test tasks to be completed with significantly less energy loss.
• Reduced Energy Loss and Enhanced Safety: Due to its reliance on high-pressure direct injection, the common rail system eliminates the pressure-boosting mechanisms found in traditional fuel pumps; consequently, the high-pressure pump in such a system requires less driving torque than a traditional pump. Furthermore, the internal filtering capacitors within the variable frequency drive (VFD) generate reactive power that is consumed by the motor, thereby reducing line losses between the power grid and the VFD, as well as minimizing copper losses within the transformer.

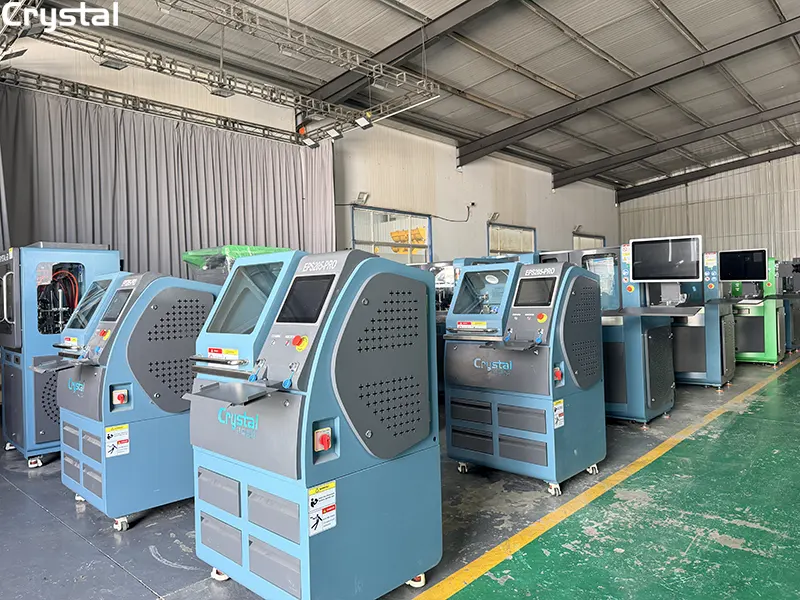

3.3. Power Range

Different test bench models are paired with specific motor power ratings tailored to their respective power requirements. The table below summarizes the power specifications for several common models, illustrating that the energy-saving potential varies significantly across equipment of different power classes:

3.4. Environmental Friendliness and Reliability

• Ultra-Low Noise: By eliminating mechanical components such as drive belts, the electronically controlled test bench operates with extremely low noise levels, thereby creating a more comfortable working environment for the user.
• Energy Efficiency and Environmental Protection: The integration of multiple energy-saving design features ensures that the overall product aligns closely with modern environmental protection principles.

3.5. Indirect Validation: Energy-Saving Data from Other Industries

• Although specific empirical data within the common rail test bench sector is currently limited, the energy-saving efficacy of variable frequency control technology has been extensively proven and is well-established across various industrial sectors. For instance, practical applications within the steel industry have demonstrated that—through the implementation of a "Rare Earth Permanent Magnet Synchronous Motor + Variable Frequency Control" retrofit—a single system can achieve annual electricity savings of 160,000 kWh. This example powerfully demonstrates that, through a direct-drive motor design and advanced variable-frequency control, achieving substantial annual energy savings—amounting to tens of thousands of kilowatt-hours—is entirely feasible.

4. Safe and Reliable

Electronic speed control integrates comprehensive safety protection mechanisms to safeguard both the equipment and the operator.

• Automatic Protection Functions: Equipped with various automatic protection features—including over-voltage, under-voltage, overload, and short-circuit protection—the system can immediately shut down or trigger an alarm in the event of an anomaly.
• Ultra-High Pressure Protection: In high-pressure common rail systems, a dedicated ultra-high pressure protection function is included to prevent hazards caused by excessive pressure.
• Automatic Oil Temperature Control: An automatic control system maintains the oil temperature within the ideal operating range (e.g., 40±2°C), thereby preventing high temperatures from compromising testing accuracy or damaging the equipment.
• Electrical Isolation: The control system employs opto-electronic isolation technology, significantly enhancing the equipment's operational reliability within complex electrical environments.

5. User-Friendly Operation

• Stepless Speed Control and Presets: Enables smooth, stepless speed adjustment and supports multi-level speed presets as well as custom settings, thereby simplifying operational procedures.
• Graphical User Interface: Features an intuitive interface—typically via a touchscreen or Windows-based operating system—where all parameters are clearly displayed and easily accessible.
• Intelligent Automation: Many units feature automated testing capabilities, lowering the operational threshold and minimizing the need for manual intervention.

6. Compatibility and Expandability

• Broad Brand Compatibility: Supports the testing of injectors and common rail pumps from numerous major brands, including Bosch, Denso, Delphi, and Siemens.
• Modular Design: Built upon a modular architecture, the system allows users to easily install specialized function modules—such as EUI/EUP testing systems—to adapt to future testing requirements.
• Compatibility with Legacy Systems: By integrating an electronic control platform (such as the ERT45R system), traditional mechanical test benches can be upgraded with the capability to test common rail systems, eliminating the need to retire existing equipment.

7. Realistic Simulation

Electronic speed control enables the precise replication of actual engine operating conditions—a feat that is difficult to achieve with traditional mechanical speed control systems.

• Simulation of Real-World Conditions: Capable of simulating engine operation across various conditions—including idle, high-speed, and full-load scenarios—to provide a comprehensive assessment of injector and injection pump performance.
• Simulation of Injection Strategies: Able to simulate complex injection strategies—such as controlling the volume and timing of pilot and post-injections—which is critical for optimizing engine emissions and fuel efficiency.
• High-Performance Injector Testing: Capable of testing both high-speed solenoid-type and piezoelectric injectors, thereby meeting the advanced technical requirements of modern engines.

8. Data Management

• Automated Data Logging and Traceability: Test data is automatically recorded, saved, and printed, facilitating the creation of comprehensive test archives and enabling efficient fault traceability.
• One-Touch Upgrades and Networked Management: Networked update capabilities ensure that testing capabilities remain constantly up-to-date, while multi-unit networked monitoring features facilitate centralized management and unified data reporting.

9. Low Noise and Environmental Friendliness

• Ultra-Low Noise: By eliminating the mechanical noise associated with traditional belt-driven systems, the equipment operates with extremely low noise levels, creating a superior working environment.
• Minimal Vibration: Featuring a direct-drive motor connection and a simplified transmission structure, the system exhibits minimal vibration and ensures smooth operation, thereby contributing to enhanced testing precision.
• Closed-Loop Fuel System: The adoption of a closed-loop fuel system reduces fuel evaporation and waste, resulting in a safer and more environmentally friendly operation.

Conclusion:

These nine key advantages work in synergy to define the standard of modern common rail injector test benches. Among them, Precision Control, Intelligent Integration, Energy Efficiency, and Safety & Reliability serve as the four core pillars, collectively ensuring the accuracy and safety of the testing process. Furthermore, User-Friendly Operation, Compatibility & Scalability, Realistic Simulation, Data Management, and Low Noise & Environmental Friendliness deliver a comprehensive upgrade in terms of efficiency, adaptability, intelligence, and eco-friendliness—collectively creating a testing platform that is more professional, efficient, and intelligent.
