From Diagnosis to Repair: How Crystal Common Rail Test Benches Reduce Diesel Engine Downtime

For fleet operators, workshop managers, and heavy-equipment owners, few words strike as much dread as "unplanned downtime." When a diesel engine stops, the clock starts ticking—and every hour the vehicle sits idle translates directly into lost revenue, missed deliveries, and mounting repair bills.

The numbers tell a sobering story. Unplanned heavy-duty truck downtime costs fleets an average of $760 per hour in lost productivity, overtime, and delivery delays. For a single heavy-duty truck, a full day of downtime can range from $1,000 to over $2,000 in lost revenue. When an injector failure escalates into a complete engine overhaul, the financial impact multiplies exponentially. Industry data shows that the global diesel engine overhaul service market reached $1.711 billion in 2025 and is projected to grow to $2.391 billion by 2032—a stark reflection of the enormous cost of downtime-driven repairs.

This is where the common rail test bench becomes indispensable. As a rapidly evolving core piece of equipment in diesel engine maintenance and calibration, it bridges the gap between diagnosis and repair—transforming how workshops identify, validate, and resolve fuel system issues, dramatically cutting both diagnostic time and overall engine downtime.

Taian Crystal Automation Co., Ltd. —a leading Chinese manufacturer headquartered in Shandong—is at the forefront of this transformation. With its advanced high-pressure common rail injector test benches, Crystal Automation is redefining diesel diagnostics through precision, automation, and data-driven reliability.

The High Cost of "Guess-and-Check" Diagnostics

Traditional diesel diagnostics often rely on a technician's experience and intuition. When an engine runs rough, loses power, or fails to start, the mechanic might swap an injector, test-drive the vehicle, and hope the problem is solved. If not, the process repeats.

This approach carries three hidden costs:

• First, the time cost. Each trial-and-error cycle consumes hours—sometimes days—while the vehicle remains out of service. A leaking injector can go undiagnosed, and the engine continues running with impaired performance, wasting fuel and risking secondary damage.
• Second, the parts cost. Misdiagnosed components are replaced unnecessarily. Injector repair claims alone average over £620 per claim—and when multiple injectors are swapped without proper diagnosis, costs spiral rapidly.
• Third, the catastrophic failure cost. A "streaming" injector can wash down a cylinder liner or melt a piston, turning a simple maintenance issue into a complete engine overhaul. Plunger and barrel failures—often the result of undetected injector wear—are "one of the fastest routes to expensive repairs and long downtime on modern diesel engines."

Crystal Test Benches: Precision-Driven Diagnosis

A common rail test bench eliminates guesswork by providing quantifiable, data-driven diagnostics. Crystal Automation's test benches are engineered to deliver industry-leading accuracy and speed.

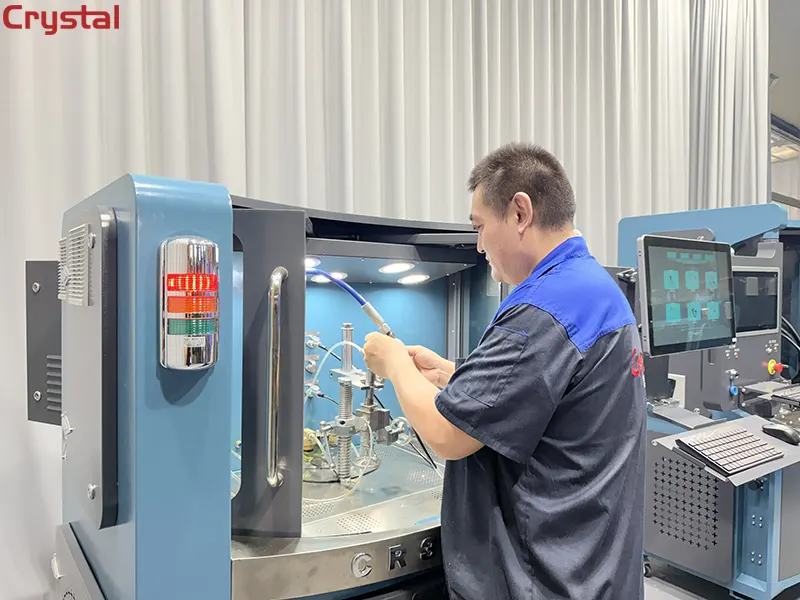

• Diagnostic speed is transformed. Modern Crystal test benches—like the CR918-PRO—can test up to four common rail injectors simultaneously in under 15 minutes. Single injector testing takes at most 15 minutes, with assembly and disassembly completed in under one minute. Compare this to the hours—or days—required for on-engine diagnosis and trial-and-error repairs.
• Accuracy is unmatched. Crystal high-pressure common rail test benches operate at pressures up to 2,600 bar (260 MPa) with pressure control accuracy of ±0.1 MPa—equivalent to just 1 bar of deviation. Flow measurement accuracy reaches 0.1 ml, enabling technicians to detect deviations invisible to the naked eye. Flow testing can catch issues early, often saving $500 to $1,200 per injector in avoided replacement costs.
• Electrical verification is comprehensive. The system tests both solenoid and piezoelectric injectors, measuring capacitance from 0 to 12 μF, response times from 0 to 999 μS, and drive currents up to 30A. This level of detail ensures that electrical faults—which can mimic mechanical failures—are caught before they cause unnecessary part swaps.
• Automation reduces human error. Crystal test benches feature fully automatic control systems that streamline the entire testing process. Operators can initiate comprehensive test sequences—including high-pressure sealing, full-load injection measurements, and response time analyses—with minimal manual intervention. The advanced software collects and generates complete test data sets, enabling mechanics and engineers to pinpoint issues with clarity and confidence.

From Diagnosis to Targeted Repair

Once the test bench identifies the specific fault—whether clogging, leakage, timing drift, or electrical failure—the repair becomes targeted and efficient.

• Automated cleaning cycles restore injector performance without disassembly. The Crystal CR918-PRO, for example, features a one-click automatic cleaning function that cleans and flushes injectors, saving valuable workshop time and eliminating the risk of manual cleaning errors.

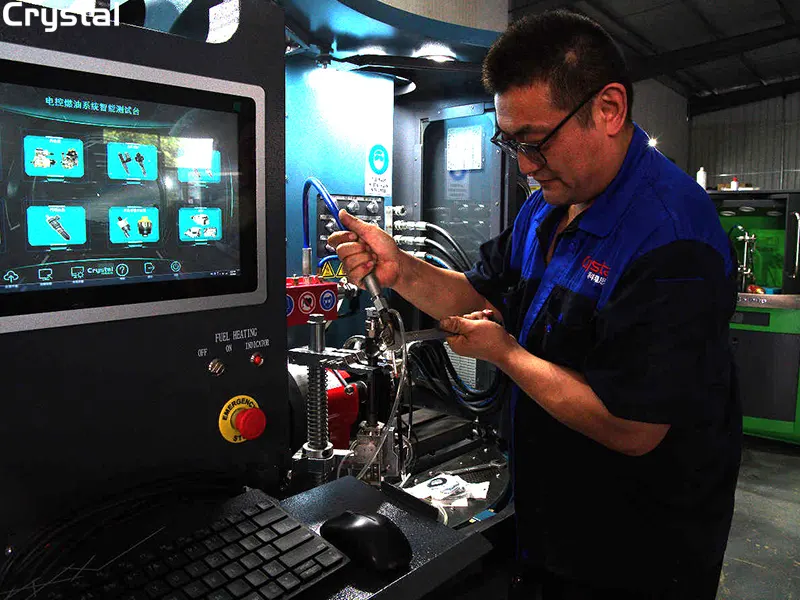

• Correction code generation ensures repaired injectors integrate perfectly with the engine's ECU. The CR918-PRO automatically generates all major correction codes—QR, IQA, IMA, ISA, c2i, c3i, and ICC (VD0) —essential for ECU communication and proper engine performance after replacement or servicing. This eliminates the need for separate coding devices and reduces setup time by up to 40%.
• Multi-injector processing allows workshops to handle multiple components simultaneously. The CR918-PRO's standard platform accommodates various fixtures, supporting testing of common rail injectors, high-pressure pumps, electronically controlled EUI and EUP units, and more. This versatility replaces the need for multiple single-purpose benches, saving workshop floor space and capital investment.

Verification Before Reinstallation—The Crystal Assurance

Perhaps the most critical step in reducing downtime is verification before reinstallation. A repaired injector that fails immediately after installation means the vehicle returns to the shop—and the downtime clock starts over.

Crystal test benches provide this verification automatically. After repair or cleaning, the injector is retested under the same rigorous conditions. Only when it passes all parameters—flow rate, sealing, response time, and electrical characteristics—is it cleared for reinstallation.

This "test-before-install" approach ensures right-first-time repairs. The vehicle leaves the workshop and stays on the road, eliminating the costly cycle of repeat visits and extended downtime. Crystal's built-in database of over 7,600 injector data profiles allows instant comparison against OEM specifications, ensuring that every repaired injector meets factory standards.

The Preventive Dimension: Catching Issues Before They Cause Downtime

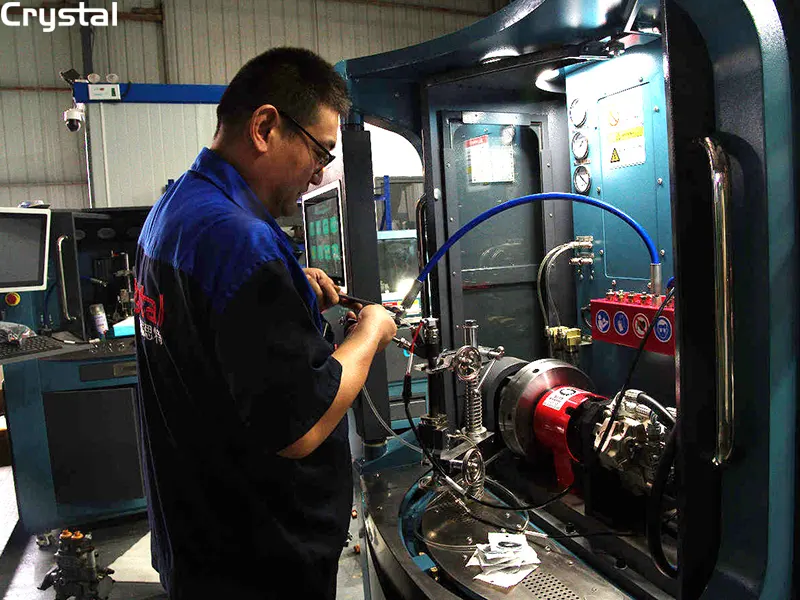

Beyond reactive diagnosis and repair, Crystal test benches enable preventive maintenance—catching injector degradation before it leads to failure.

Regular bench testing can save money by identifying issues early, reducing the need for more expensive repairs or part replacements later. Routine testing ensures injectors and pumps are working properly, extending engine life and reducing the frequency of unplanned breakdowns.

For fleet operators, this means scheduling maintenance during planned downtime rather than responding to emergency breakdowns. Predictive maintenance has a documented positive impact on diesel engine reliability, enabling early detection of failures and reducing unexpected and costly breakdowns. Crystal test benches feature real-time monitoring alerts that can cut diagnostic-related downtime by 30% compared to manual methods, and integrated emergency stop functionality reduces downtime risks by 50% in critical scenarios.

The Workshop Transformation: From "Craft" to "Science"

Perhaps the most profound impact of the Crystal common rail test bench is its transformation of diesel repair from a personal craft into a scientific, standardized process.

Test results are no longer "a rough look"—they become technical data that can be quantified, compared, and recorded. This standardization brings several tangible benefits:

• Faster technician training. New employees can master standard test procedures in a short time, reducing problems caused by human operating errors. Crystal's intuitive touch-screen interface and step-by-step prompts cut training time by up to 50%.
• Consistent service quality. Every injector is tested against the same OEM specifications, eliminating variability between technicians and ensuring repeatable, reliable results.
• Expanded service capabilities. A single Crystal CR918-PRO supports testing of common rail injectors, high-pressure pumps, EUI/EUP units, and more—eliminating the need for multiple single-purpose benches and enabling workshops to accept a wider range of jobs.

The Bottom Line: ROI That Speaks for Itself

For any workshop or fleet operation, a Crystal common rail test bench represents a strategic investment with measurable returns:

Benefit	Impact
Reduced diagnostic time	From hours or days to under 15 minutes per injector (up to 4 at once)
Fewer misdiagnosed parts	Eliminates unnecessary replacements, saving $500–$1,200 per injector
Preventive maintenance	Catches issues early, avoiding catastrophic failures and $1,000–$2,000+ per day of downtime
Right-first-time repairs	Eliminates repeat visits and extended downtime
Expanded service range	Attracts more customers and increases workshop revenue by up to 35%
Correction code integration	Saves separate coding device costs and reduces setup time by 40%

Crystal Automation's test benches are designed for longevity and reliability. With proper maintenance, they deliver consistent performance for over 10 years, providing a long-term return on investment that far outweighs the initial purchase cost.

Crystal Automation: Your Partner in Diesel Diagnostics

Taian Crystal Automation Co., Ltd. has been serving the global diesel service industry for years, earning a reputation for quality, innovation, and customer support. Every Crystal test bench is built with:

• Bosch CP3.3 high-pressure pumps for reliable pressure generation
• 304 stainless steel fuel circuits for corrosion resistance and durability
• Ergonomic workstation design to reduce operator fatigue and improve efficiency
• Wi-Fi connectivity for remote diagnostics and software updates
• Over 4,000 built-in injector test data sets (expandable to 7,600+) for instant brand and model recognition

Crystal's commitment to quality is reflected in its rigorous testing and calibration protocols. Every bench is factory-calibrated and shipped with a comprehensive calibration certificate, ensuring that customers receive equipment ready for immediate, accurate use.

Conclusion

From diagnosis to repair, the common rail test bench is the essential link that keeps diesel engines running and vehicles on the road. By replacing guesswork with data, trial-and-error with precision, and reactive repairs with preventive maintenance, Crystal Automation delivers what every workshop and fleet operator values most: less downtime, lower costs, and greater reliability.

In an era of increasingly complex diesel engines and ever-tightening emissions standards, the question is no longer whether to invest in a common rail test bench—but how soon. With Crystal Automation, you're not just buying a machine; you're investing in a complete diagnostic ecosystem that keeps your business moving forward.
