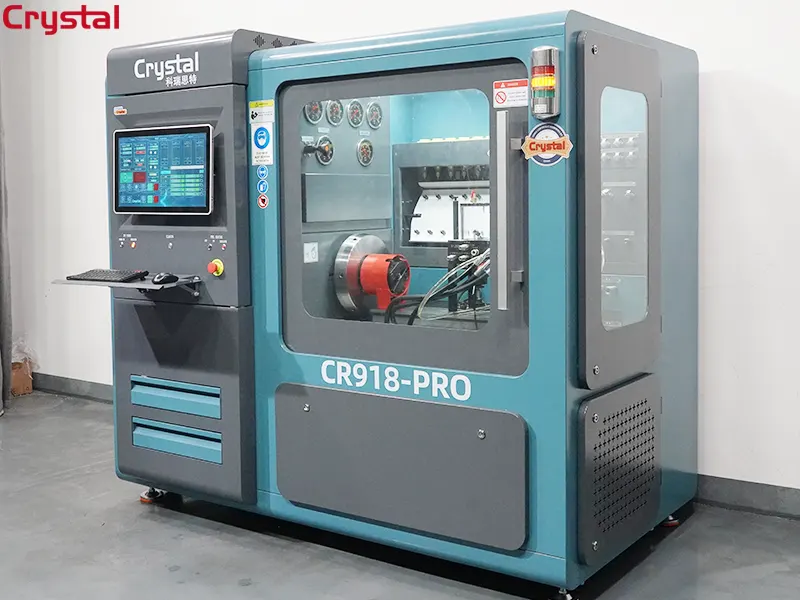

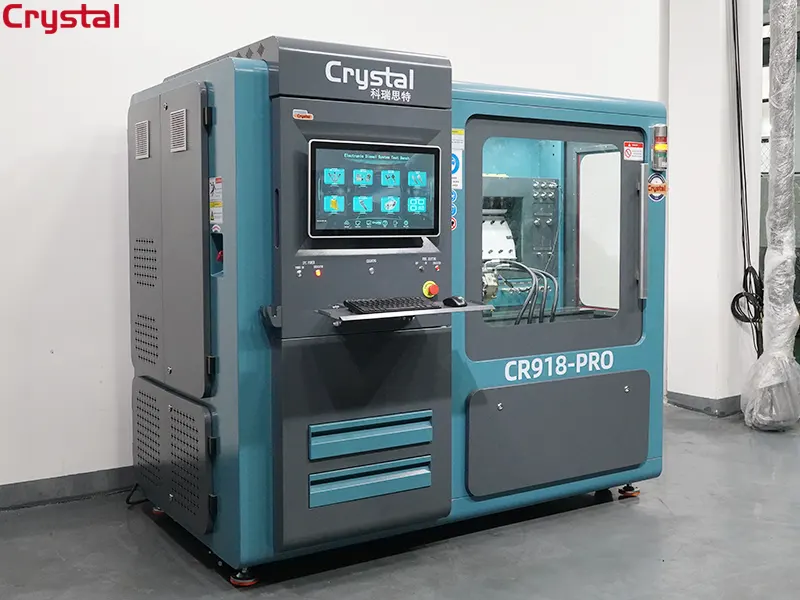

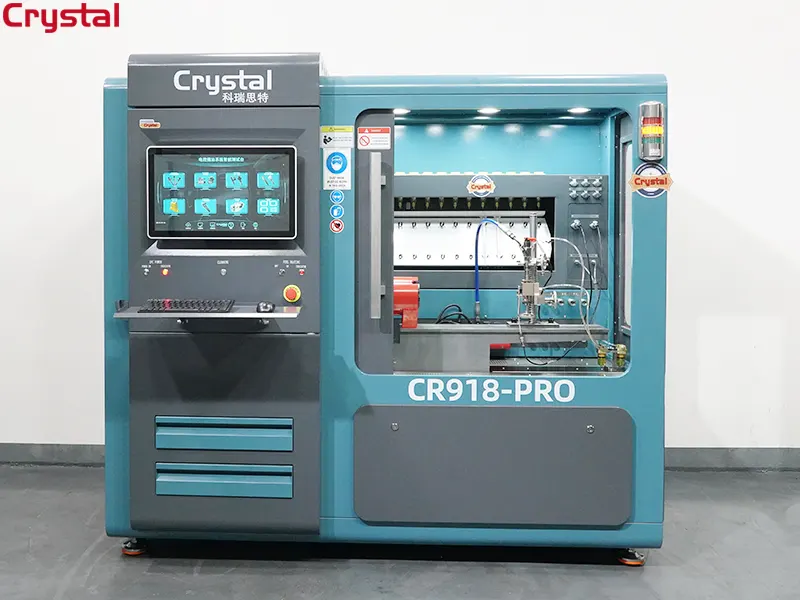

CR918-PRO

CR918-PRO common rail test bench is a new test equipment. This equipment can be very convenient to tested and overhauled for electronically controlled high-pressure common rail injectors (including piezoelectric high-pressure common rail injectors), high-voltage electronically controlled common rail pumps, electronically controlled unit pumps, electronically controlled pump nozzles, and PT pumps (optional), PT injector (optional), Cummins X15 Q60 injector (optional), Cummins timing and metering actuator (optional), etc.

Highlights:

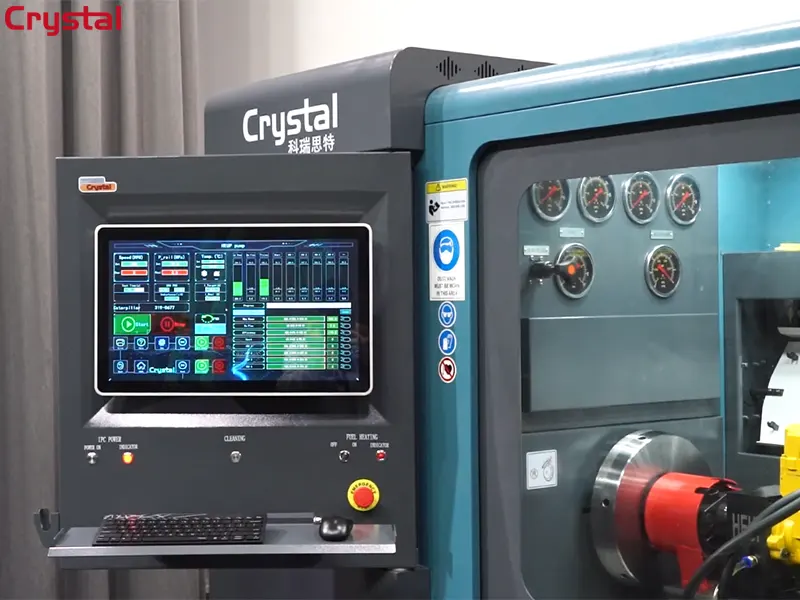

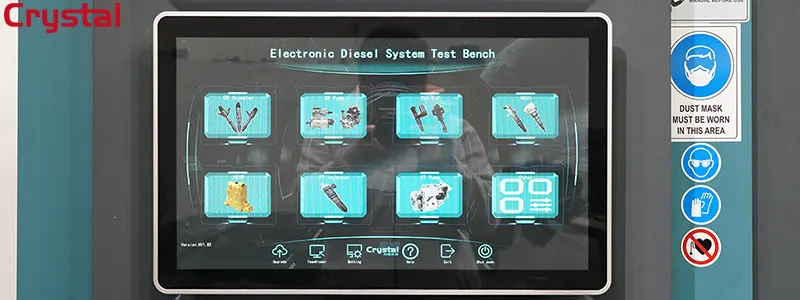

• 1. Professional touch screen version industrial all-in-one controller. High configuration, stable operation and fast speed.
• 2. The new control system makes the operation more stable, efficient and convenient.
• 3. The industrial all-in-one machine is installed through the angle adjustment bracket, so that the screen can be adjusted at a certain angle to adapt to the viewing angle of different people and optimize the influence of ambient light.

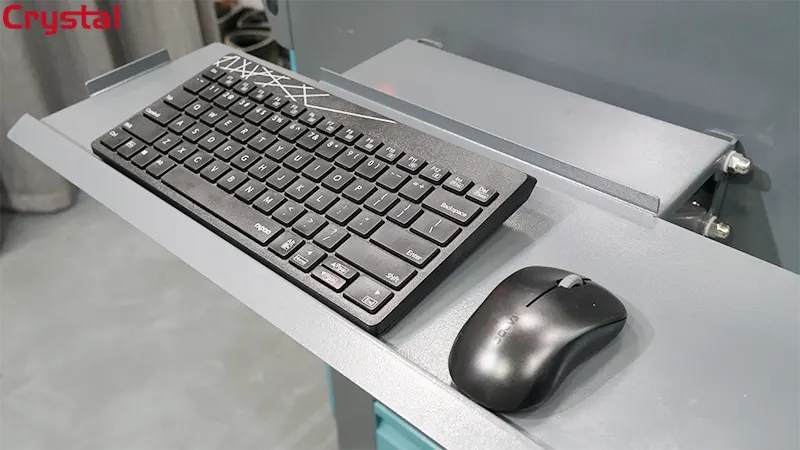

4. Foldable (90^o) keyboard and mouse stand. This stand is firm, reliable, easy to use and easy to transport when folded.

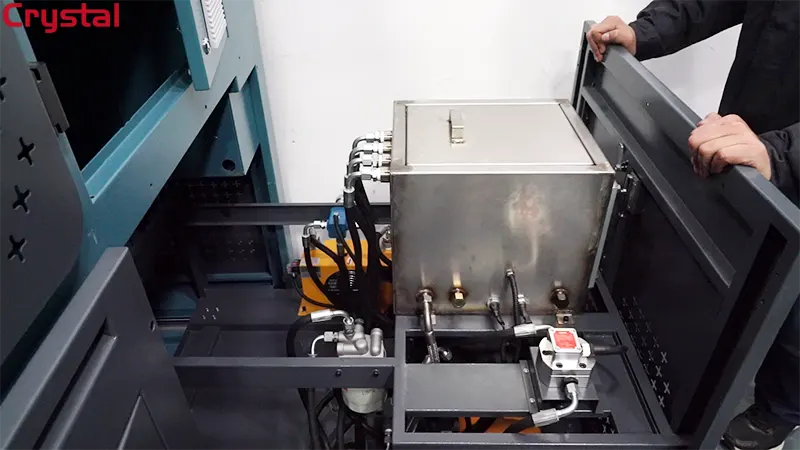

5. The entire oil module can be easily pulled out of the equipment for later maintenance and maintenance.

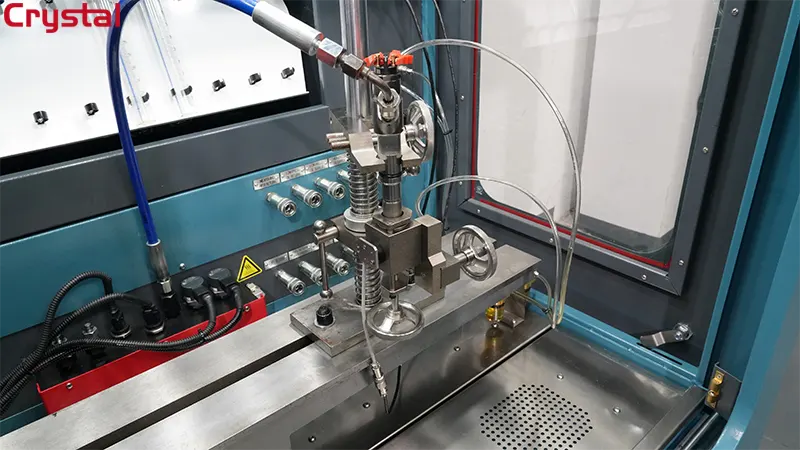

6. Equipped with a new universal injector mounting bracket, making the test injector more convenient, more stable and more reliable.

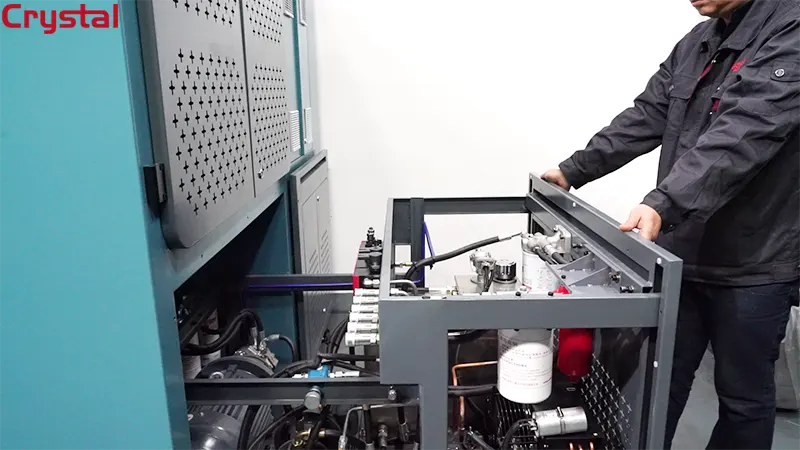

7. The fuel high and low pressure fuel supply modules, fuel temperature control modules, etc. can be pulled out of the equipment, and the layout and pipeline design have been optimized, making the reliability and the convenience of later maintenance comprehensively improved.

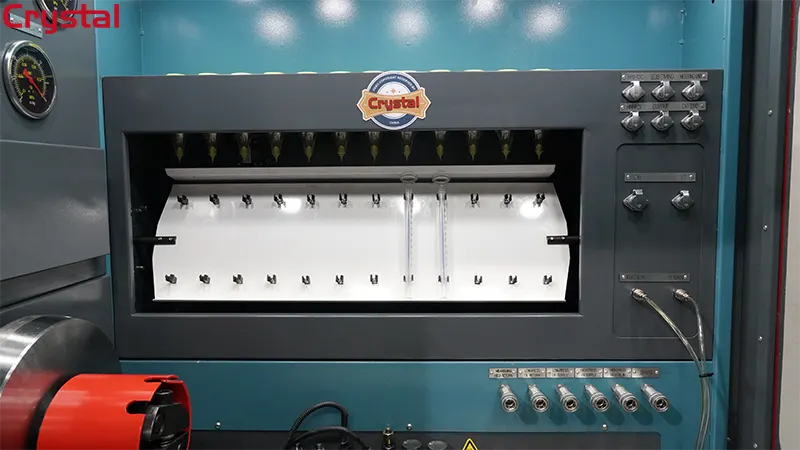

8. Equipped with a 12-cylinder auto-turning oil collecting tank assembly, it can allow the equipment to test some traditional in-line pumps, VE pumps, VP37 pumps, VP44 pumps and other pump types that require graduated cylinder measurement, and can also increase the measuring function of the measuring cylinder for the measurement of the high pressure common rail injector.

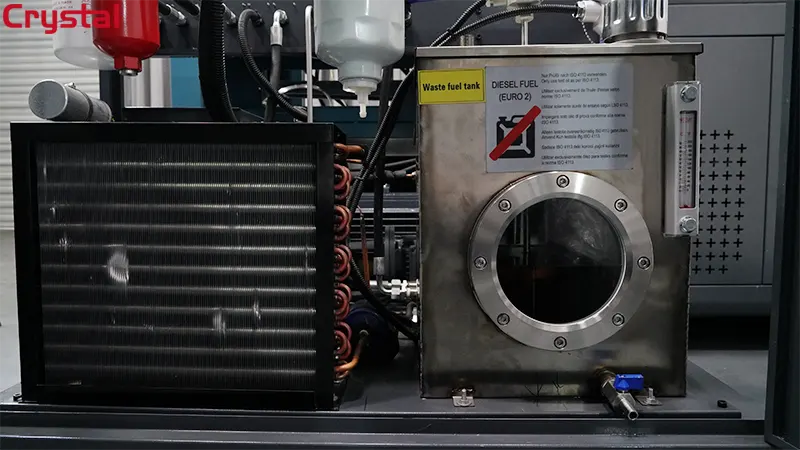

9. The fuel tank is equipped with maintenance and observation windows, which is convenient for later maintenance and observation of oil. The fuel tank is made of industrial 304 stainless steel, so that the fuel oil will not be polluted by the material.

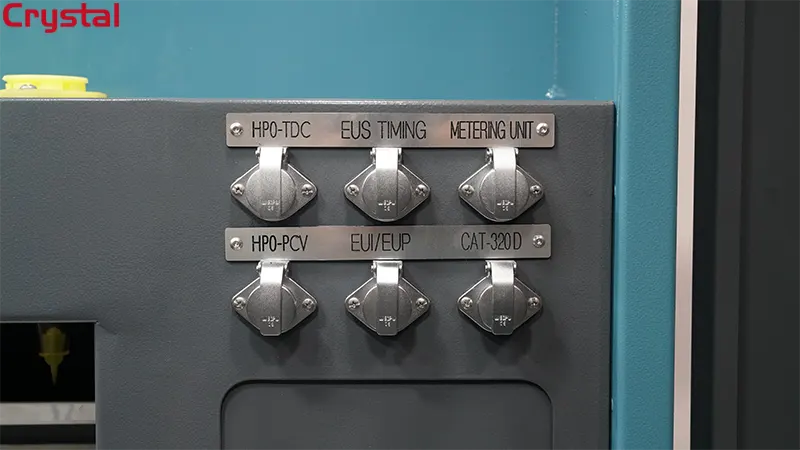

10. All-metal, high-current three-proof high-end plug.

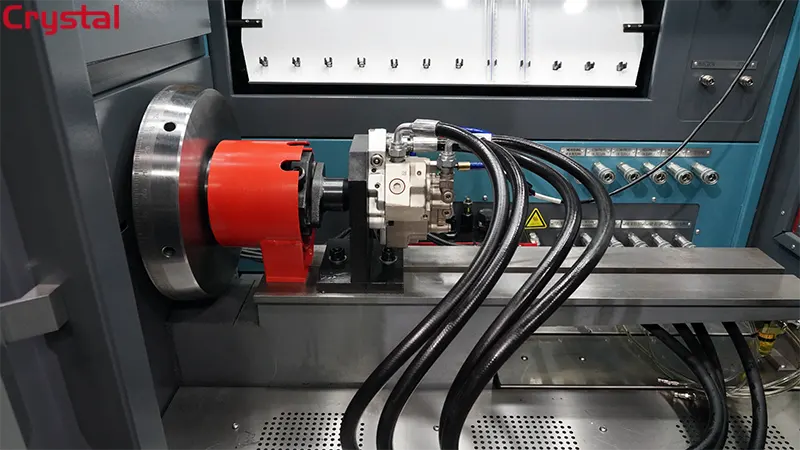

11. Special customized fuel hose, aging resistance, small bending radius and easy to use.

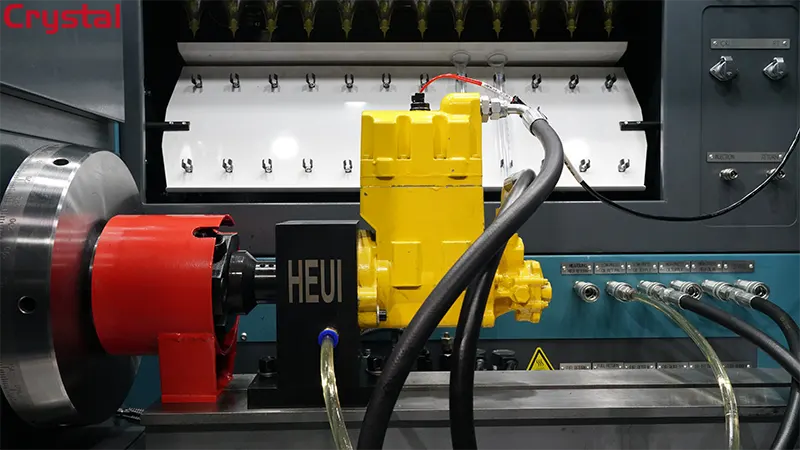

12. Caterpillar medium pressure actuated pumps can be performance tested, convenient, fast and accurate.

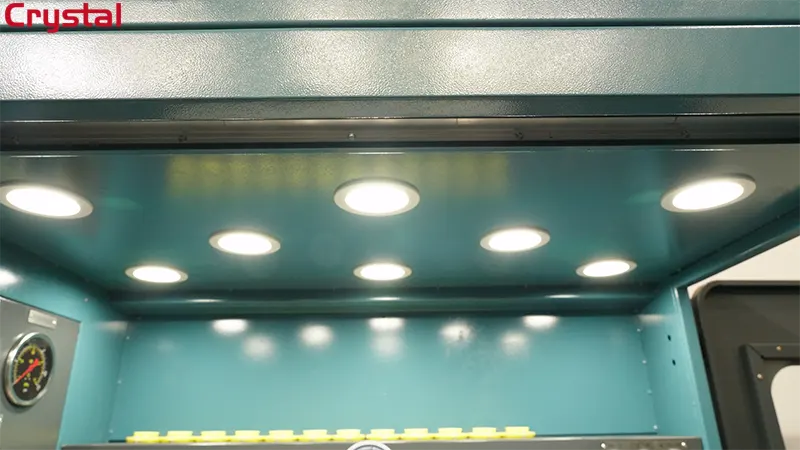

13. The operating room ceiling light adopts a shadowless lamp design, so that the light in the operating room has no dead angle, which is convenient for operation and observation.

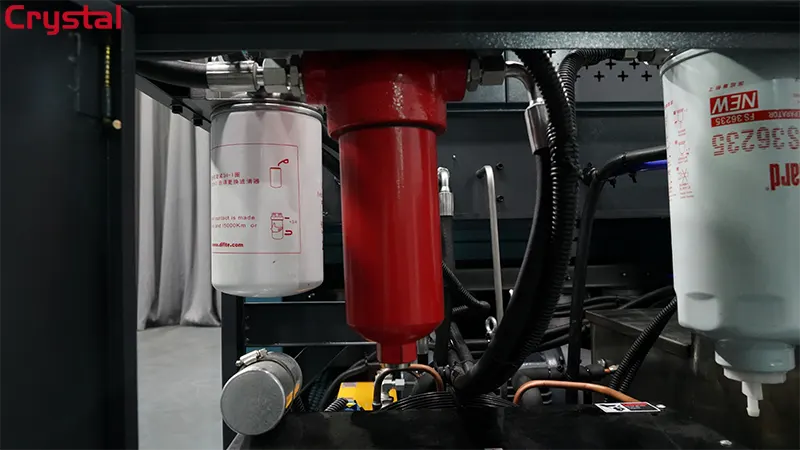

14. Equipped with fuel high pressure filter and oil high pressure filter, the filtration precision of fuel high pressure oil supply and oil high pressure oil supply can be effectively guaranteed.

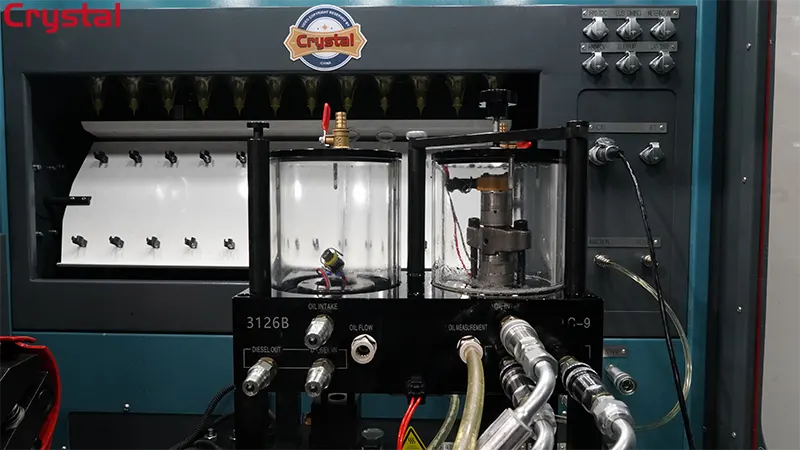

15. Equipped with the performance test of Caterpillar HEUI, which is easy to install and accurate to test.

Functions:

NOTE： STANDARD         OPTIONAL        - NO

Parameter
