CR818

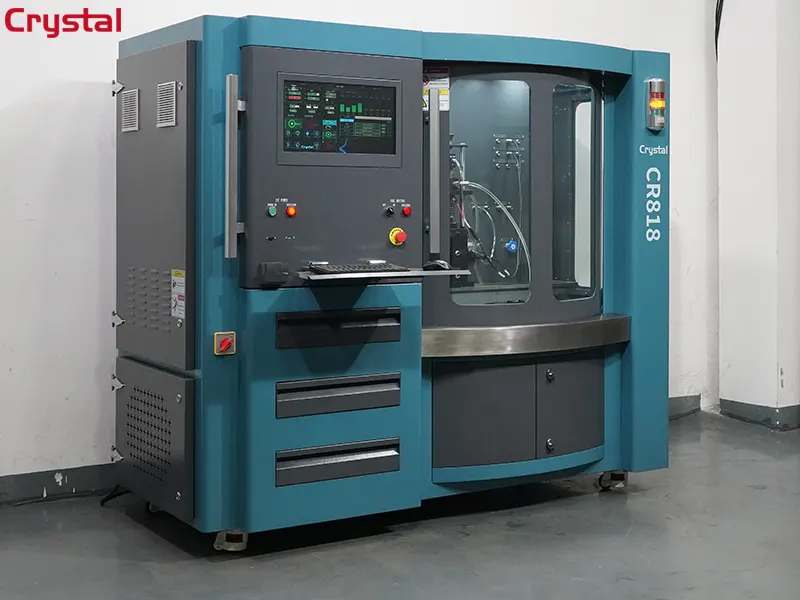

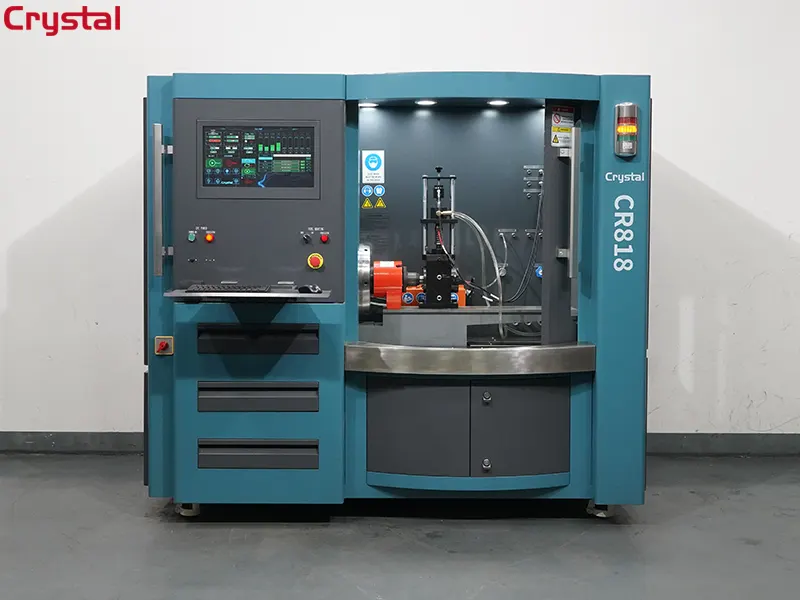

The CR818 is an economical, comprehensive common rail test bench that offers greater operational stability and ease of use compared to traditional products of its kind. It is capable of performing performance tests on high-pressure electronically controlled common rail injectors, high-pressure electronically controlled common rail pumps, EUI/EUP units, and similar components; furthermore, it supports the optional integration of various camshaft boxes, such as the EUS-23, EUS-P, and EUS-H.

Functions:

• 1. Test high-pressure common rail injectors produced by BOSCH, DENSO, DELPHI, CATERPILLAR, CUMMINS, SIMENS, L’ORANGE, Xinfeng, CHONGYOU, BYC, LongBeng, etc.
• 2. Test high-pressure common rail pumps produced by BOSCH, DENSO, DELPHI, CATERPILLAR, CUMMINS, SIMENS, Xingfeng, etc.
• 3. Test the electronically controlled pump nozzles and electronically controlled unit pumps produced by Caterpillar, Delphi, Cummins, etc.
• 4. Operating system and hardware support can automatically generate fuel quantity correction codes for electronically controlled common rail injectors: QR, IQA, IMA, ISA, c2i, c3i, (VD0) ICC .
• 5. The test process can be selected according to the actual situation, the test data report can be automatically generated, and printing is supported.
• 6. Equipped with mounting brackets, spacers, bushings, couplings and other kits suitable for high-pressure common rail pump testing and connection to the main drive motor.

Highlights:

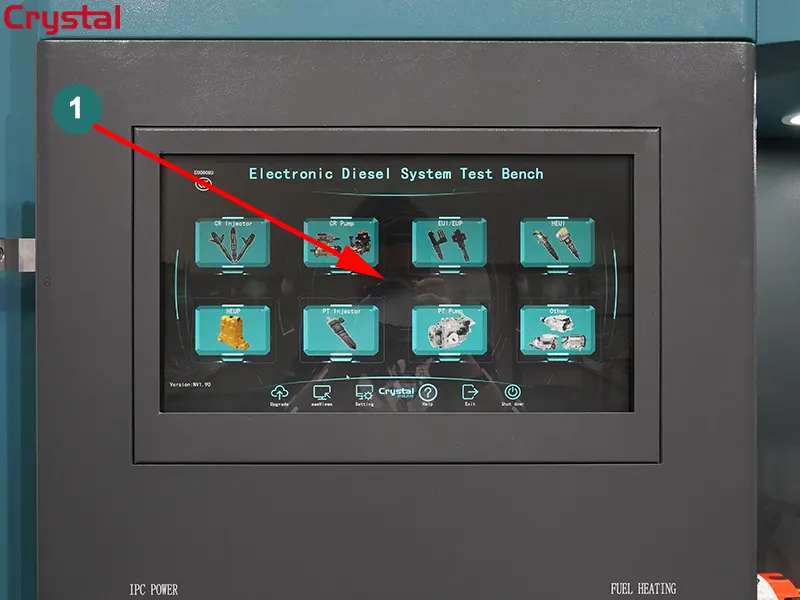

• 1. Featuring the latest operating system for stable performance and user-friendly operation, combined with a brand-new 19.5-inch Philips display and an industrial-grade PC configuration.

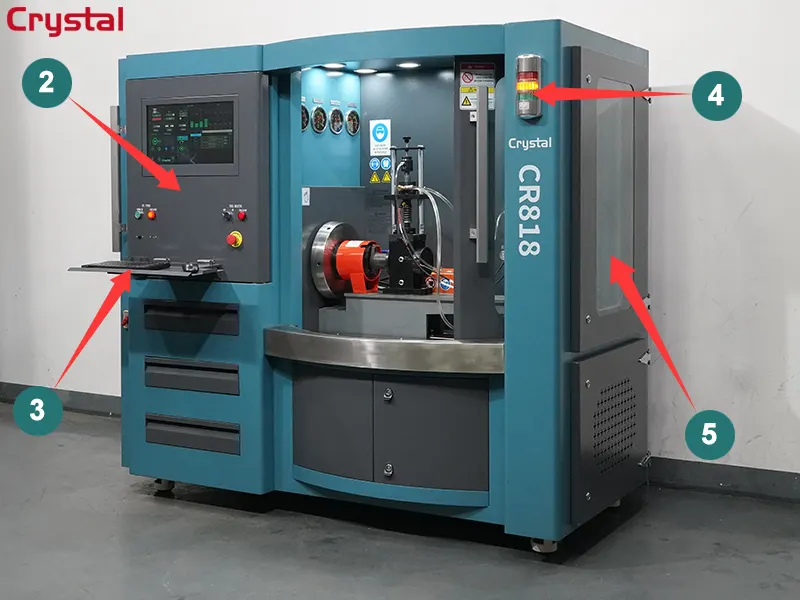

• 2. Rotatable Operator Station.
• 3. Foldable Mouse and Keyboard Tray.
• 4. Three-Color Status Indicator and Alarm Light.
• 5. The observation windows on the control room door and the right-side door are all fitted with 8mm high-transmittance, high-strength tempered glass panels.

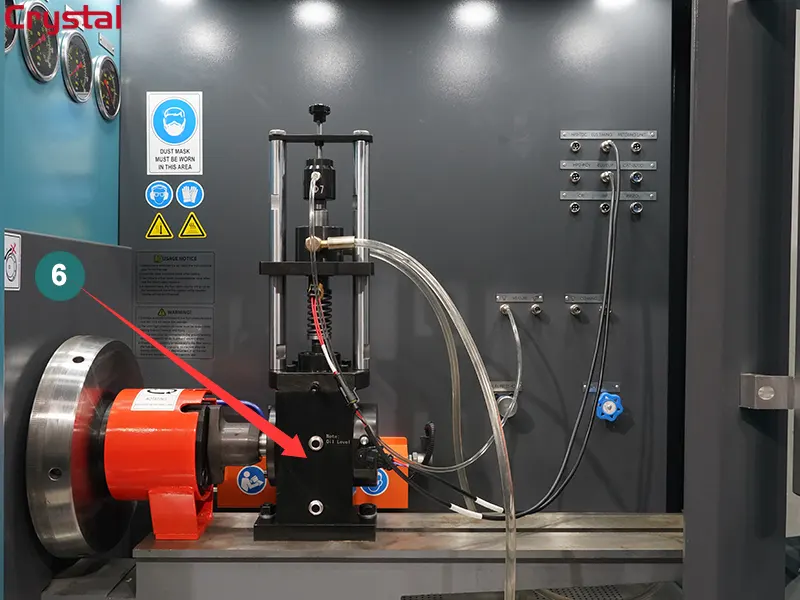

• 6. The cam box comes standard with the EUS-13, with the EUS-23, EUS-P, and EUS-H available as optional accessories.

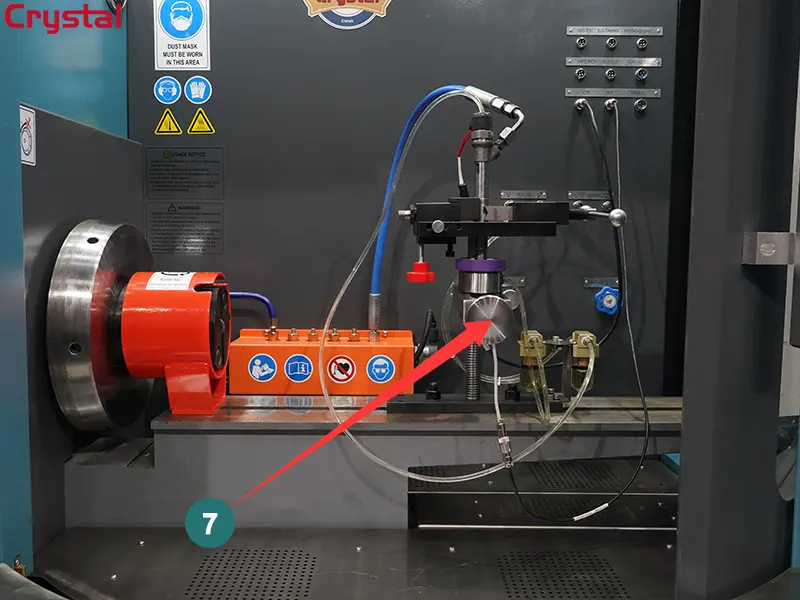

• 7. It comes standard with a universal injector bracket; the new universal injector bracket is available as an optional accessory.

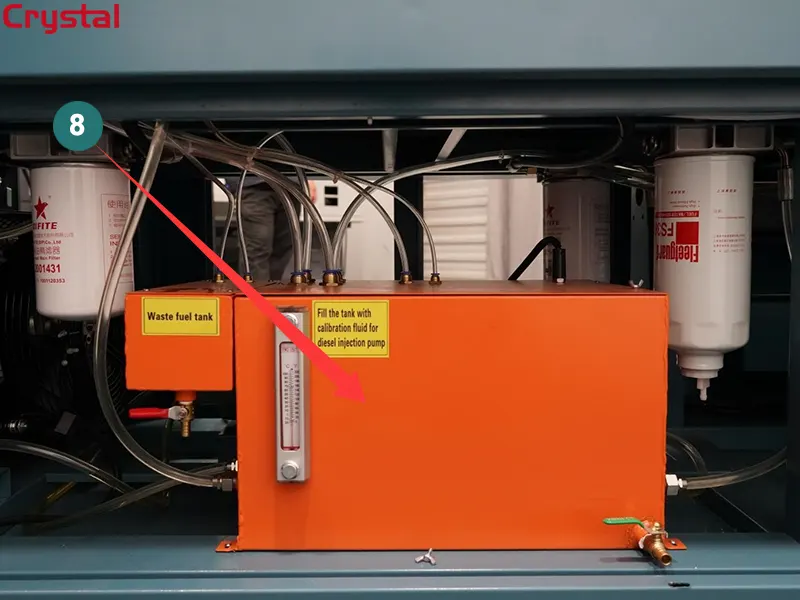

• 8. The economy model features large-capacity dedicated tanks for test oil and waste oil, and employs a cooling system utilizing a circulation pump combined with a forced-air fan.

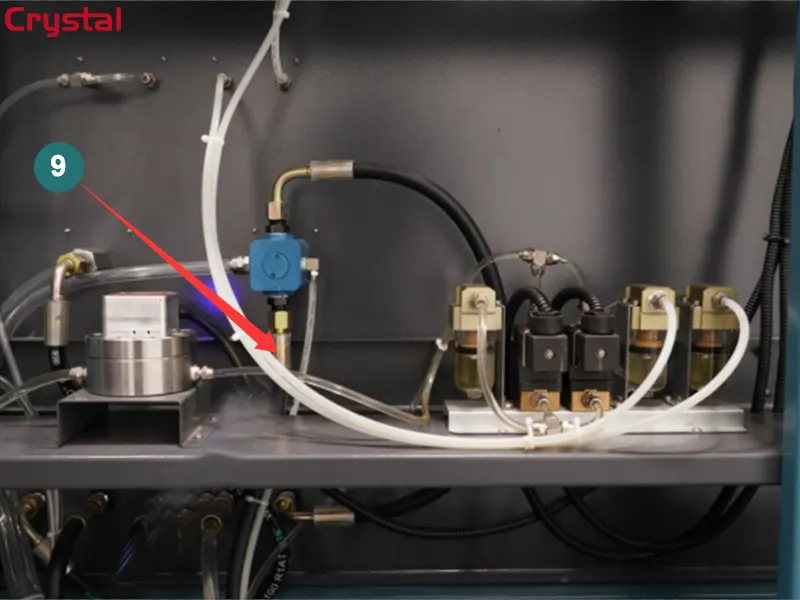

• 9. The high-precision gear flowmeter oil measurement system cannot be equipped with a graduated cylinder measurement system.
• 10. 11 kW Motor + 11 kW Variable Frequency Drive + Cast Iron Workbench.
• 11. Common Rail Injector Independent Test Motor: 4 kW, Bosch CP3.3 Common Rail Pump.

Parameter

Item	Parameters
	CR818	CR818-PRO	CR818-PLUS
Electronic control common rail test control system version	The latest PRO version of the electronically controlled common rail test control system
Height of main motor axis from table top	125mm
Main motor drive power	11KW	15KW	15KW
The main drive motor matches the inverter power	11KW	15KW	15KW
Common rail injector test independent drive motor power	4KW	5.5KW	5.5KW
Rail oil pressure system maximum pressure rail oil pressure system	250MPa
Low pressure oil circuit pressure regulation range	0~0.8 MPa	0~1 MPa	0~1 MPa
Oil temperature control range	40±2oC
Test oil heating power	1KW	2KW	2KW
Test oil cooling method	air cooling	air cooling	Forced cooling
Test Oil Filtration System Filtration Level	Level 2	Level 3	Level 3
Filtration accuracy of test oil filtration system	3-5μ
Test oil main tank volume (L)	40L	60L	60L
Device Voltage/Frequency	380V 3ph/ 50HZ
Whether to support voltage customization in different countries	Support
Net weight		1280KG
Gross Weight		1380KG
Machine Dimensions（L/W/H）		2080X1070X1830
Package dimensions （L/W/H）		2280X1270X2050

The CR818 is a more economical option compared to the CR818PRO, making it an ideal recommendation for price-sensitive customers.

Compared to the HCR708, this model features a sturdier and more stable overall frame, as well as a more aesthetically pleasing and impressive appearance. The testing process is more stable and reliable, while the functional zones are more logically organized to facilitate easier maintenance and installation. It incorporates a drawer design for convenient storage of tools and testing accessories, as well as a three-color status indicator light that allows for easy monitoring of the equipment's operational status. The lighting within the operating chamber utilizes multiple high-brightness LED disc lights, ensuring that operation remains unaffected by ambient lighting conditions. Furthermore, the internal piping and wiring harnesses have undergone optimization to provide robust assurance for stable and reliable testing performance.
