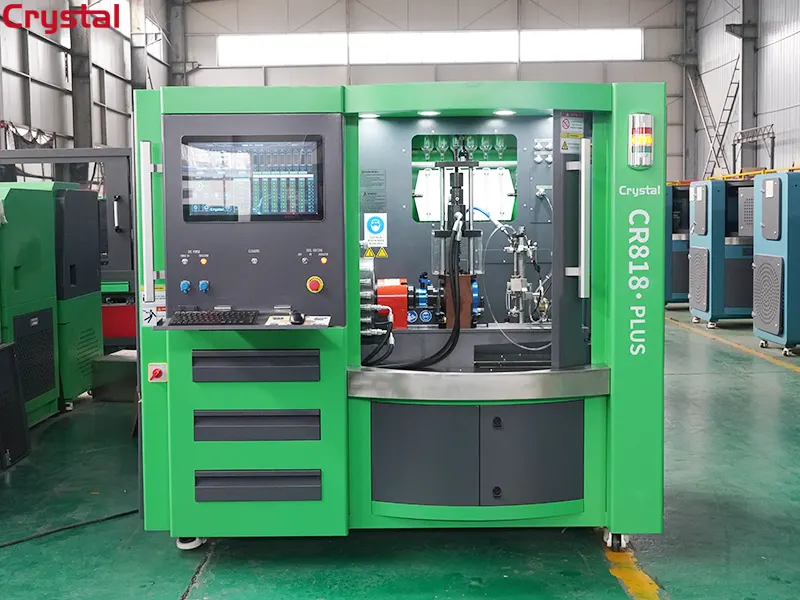

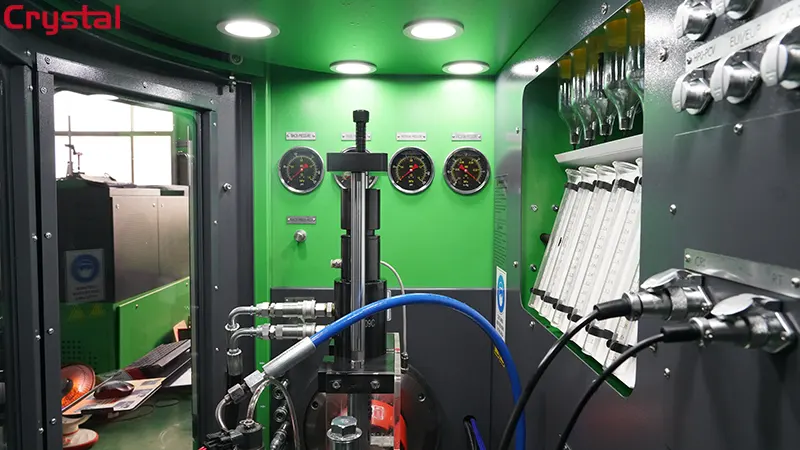

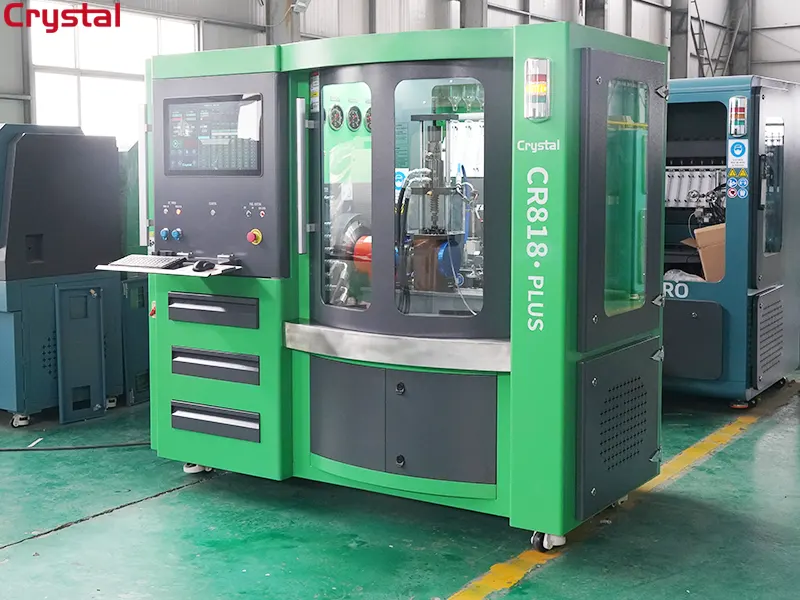

CR818-PLUS

The CR818 series products are a new generation of upgraded products with independent intellectual property rights developed by our company. Take the CR818-PRO version as an example. Through careful research on market demand and customer feedback, the product has a modular design for each functional area. Different functional requirements of customers are combined in various ways, and the upgrade interface of optional functions is retained, which reflects its professional quality and product characteristics in terms of product design, manufacturing process and selection of key components.

Functions:

• 1.Test high-pressure common rail injectors produced by BOSCH, DENSO, DELPHI, CATERPILLAR, CUMMINS, SIMENS, L’ORANGE, Xinfeng, CHONGYOU, BYC, LongBeng, etc.
• 2.Test high-pressure common rail pumps produced by BOSCH, DENSO, DELPHI, CATERPILLAR, CUMMINS, SIMENS, Xingfeng, etc.

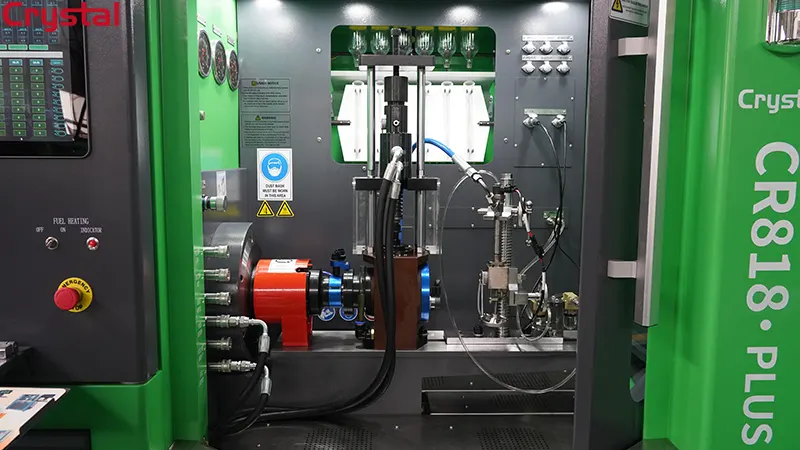

• 3.Test the electronically controlled pump nozzles and electronically controlled unit pumps produced by Caterpillar, Delphi, Cummins, etc.
• 4.Operating system and hardware support can automatically generate fuel quantity correction codes for electronically controlled common rail injectors: QR, IQA, IMA, ISA, c2i, c3i, (VD0) ICC.

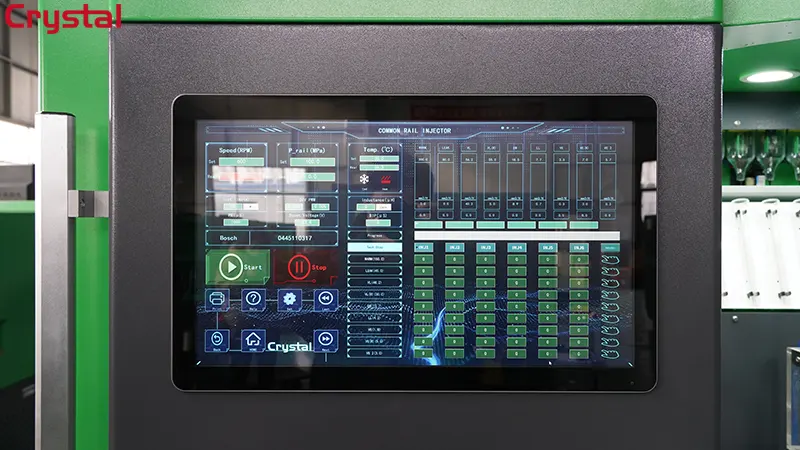

• 5.The test process can be selected according to the actual situation, the test data report can be automatically generated, and printing is supported.

Highlights:

• 1.New design concept, patented product appearance.
• 2.Equipped with the latest PRO version of the electronically controlled common rail test control system.
• 3.The whole series of products are reasonably configured and combined to meet the needs of different customers.
• 4.Increased safety protection level.
• 5.The convenience of operation and maintenance have been improved accordingly.
• 6.A series of upgrades have been made in the performance and material of equipment parts.

Parameter

Item	Parameters
	CR818	CR818-PRO	CR818-PLUS
Electronic control common rail test control system version	The latest PRO version of the electronically controlled common rail test control system
Height of main motor axis from table top	125mm
Main motor drive power	11KW	15KW	15KW
The main drive motor matches the inverter power	11KW	15KW	15KW
Common rail injector test independent drive motor power	4KW	5.5KW	5.5KW
Rail oil pressure system maximum pressure rail oil pressure system	250MPa
Low pressure oil circuit pressure regulation range	0~0.8 MPa	0~1 MPa	0~1 MPa
Oil temperature control range	40±2oC
Test oil heating power	1KW	2KW	2KW
Test oil cooling method	air cooling	air cooling	Forced cooling
Test Oil Filtration System Filtration Level	Level 2	Level 3	Level 3
Filtration accuracy of test oil filtration system	3-5μ
Test oil main tank volume (L)	40L	60L	60L
Device Voltage/Frequency	380V 3ph/ 50HZ
Whether to support voltage customization in different countries	Support
Net weight		1280KG
Gross Weight		1380KG
Machine Dimensions（L/W/H）		2080X1070X1830
Package dimensions （L/W/H）		2280X1270X2050

Configuration Standards

CR818 is divided into three models: CR818, CR818-Pro and CR818-PLUS according to different configurations and expanded functions to meet the different needs of different customers. Please see the table below for specific information:

Item	Project details	CR818	CR818-PRO	CR818-PLUS
Extended function	Engine power adjustment function	-
	One-key cleaning function of electronically controlled high pressure common rail injector	-
	6-cylinder automatic flip fuel tank (stepper motor + driver + controller, etc.)	-	-
	Oil circuit switching valve of measuring cylinder measuring system and flow meter measuring system	-	-
	Test 2, 4, and 6 high-pressure common rail injectors at the same time	-
	PT Injector and PT Pump Test	-
	Cummins X15 Injector, Q60 Injector, Timing and Metering Actuator Test
	VE pump, VP37 pump, VP44 pump test	-	-
Mounting fixtures, cam boxes, accessories, etc.	1 set of universal clamps for clamping various types of electronically controlled common rail injectors	Traditional type	New type	New type
	1 set of built-in injector connecting fixture	-
	Equipped with mounting brackets, spacers, bushings, couplings and other kits suitable for high-pressure common rail pump testing and connection to the main drive motor
	Cam box	13 Pcs	23Pcs	Upgraded version

Configuration Differences

We have already understood the differences in the main functional configurations of different models of the CR818 series. In order to make the equipment run better and customers can use the machine more conveniently, engineers have also upgraded more equipment details and component selection. Please see The following table:

Introduction to cost or configuration differentiation of CR818 series products

Item	Details	CR818	CR818-PRO	CR818-PLUS
Human-machine friendly design	New design, patent appearance
	Curved door design saves space
	All metal buttons, indicator lights, switches	-
	keyboard + mouse	wired	wireless	wireless
	Three-proof panel installation aviation plug	-
	Each functional partition adopts a modular design, and some functional expansion interfaces are reserved
	The low-pressure oil circuit part is independently designed as an independent module, and can be pulled out from the equipment for easy maintenance	-
	Industrial towline configuration (low-pressure oil supply pipes and oil return pipes are centrally stored in the towline)	-
Equipped with Foma wheel, easy to move
Industrial Control System Software and Hardware	Equipped with the latest PRO version of the electronically controlled common rail test control system
	Hardware configuration: host + display mode	IPC + Display	High-performance industrial all-in-one machine	High-performance industrial all-in-one machine
	Support WIFI connection to the Internet
	Support remote control and remote service
	Free upgrade of new software version
	Control board with extended functions	-
The key configuration of the oil circuit system	Low pressure fuel supply pump	gear pump	Low noise vane pump	Low noise vane pump
	Low pressure fuel supply pump drive main engine power	0.55KW	0.75KW	0.75KW
	1 set of stainless steel diversion pipes for oil return in the oil tank (effectively eliminate air bubbles generated by the oil return oil circuit)	-
	Special metal hose is used for the centralized return oil tank return pipe	-
	Low-pressure oil filter system is equipped with oil-water separator	-
	Low pressure piping material	PU tube	Diesel special hose	Diesel special hose
	Industrial External Refrigerator Forced Brazed Plate Heat Exchanger Forced Cooling System	-
	Industrial cooling fan + circulating pump cooling system
	Shock Resistant Stainless Steel Dial Pointer Mechanical Pressure Gauge
	Back pressure throttle	Carbon Steel Needle Valve	Stainless Steel Scaled Throttle Valve	Stainless Steel Scaled Throttle Valve
	The test oil circuit part is connected by stainless steel 304 steel pipe	-
	main fuel tank	Carbon steel+spray	304 stainless steel	304 stainless steel
	304 stainless steel centralized return tank	-
safety protection	The protective door is equipped with 8mm high-strength, high-transmittance tempered protective glass;
	LED running status three-color indicator warning light
	Test oil automatic temperature control system + low level heating protection
