CR518-PRO

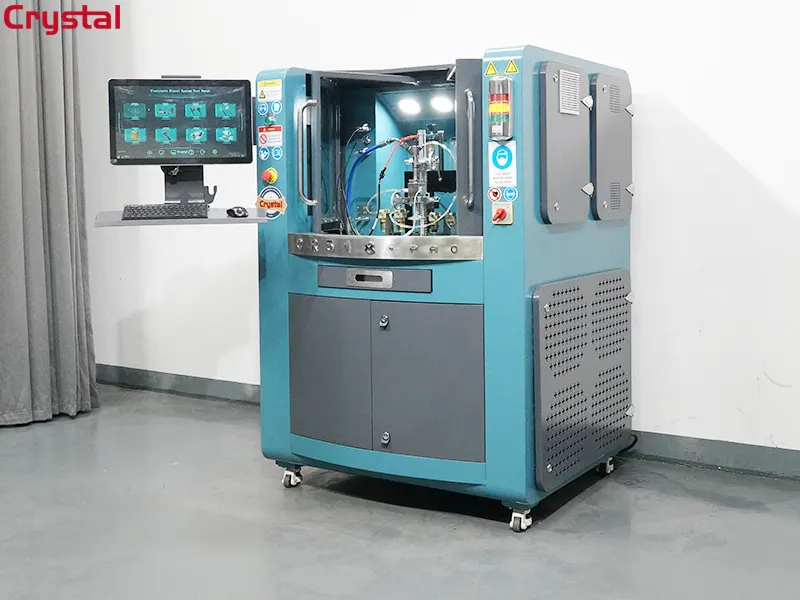

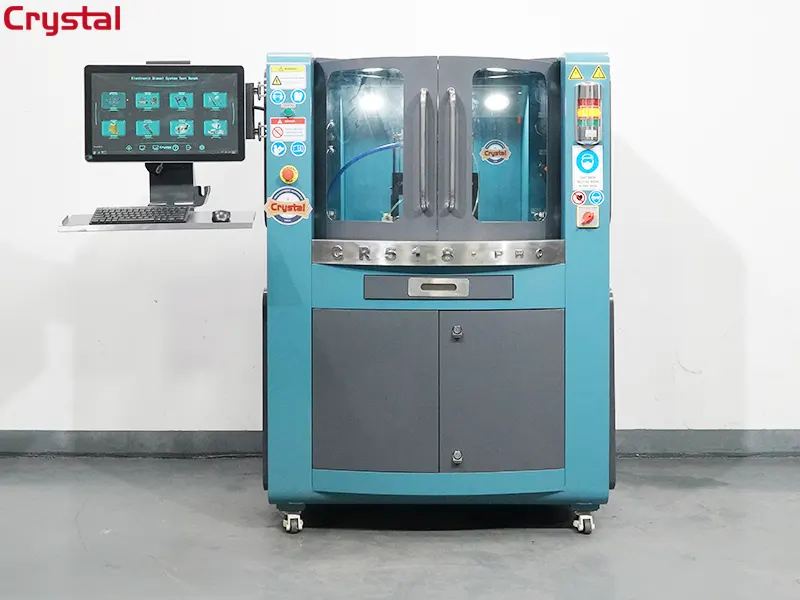

CR518-PRO multi-functional common rail test bench is a new generation test bench for common rail injectors and HEUI developed by Taian Crystal Automation Co., Ltd. It has a lot of upgraded functions, such as 306^orotary work bench to switch from injector to HEUI, self-developed PRO operating system with 7000+ data, one-key cleaning, high quality pipe and components etc.

Functions:

• 1. Test High pressure common rail injector.
• 2. Test Piezoelectric injector.
• 3. Test HEUI injector.
• 4. Automatic alarm for insufficient oil level.
• 5. Self-generated DENSO injector QR code.
• 6. Self-generated BOSCH injector IMA code.
• 7. Self-generated DELPHI injector C3i coding.
• 8. Self-generated Siemens injector correction code.

Highlights:

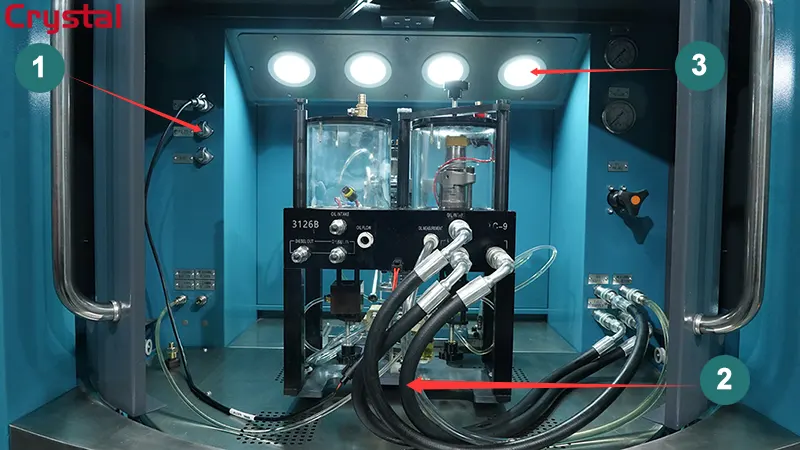

• 1. The electrical harness adapter plugs feature heavy-duty, all-metal, triple-protection connectors, ensuring that harness connections are more convenient, secure, and reliable.
• 2. All hoses and tubing throughout the equipment are custom-manufactured specifically for hydraulic fluid and fuel applications.
• 3. The control cabin is illuminated by high-brightness, flush-mounted LED dome lights, ensuring that equipment operation remains unaffected by ambient lighting conditions.

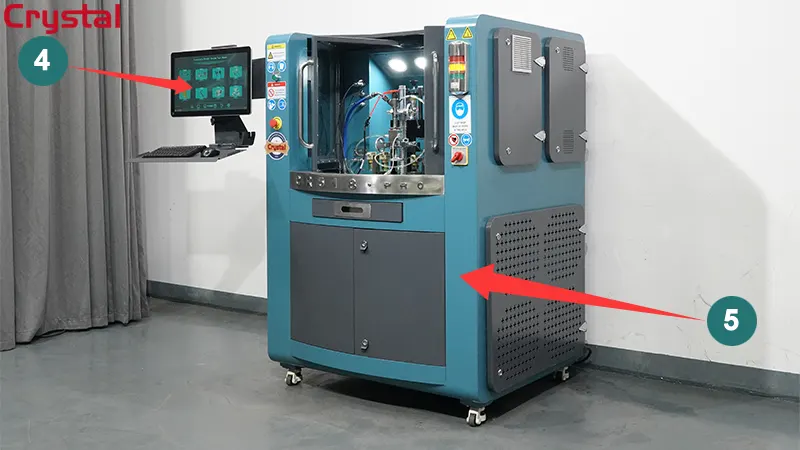

• 4. The main control unit utilizes a high-performance industrial all-in-one touchscreen computer, facilitating smoother, more stable, and more reliable operation of the testing software while guaranteeing ample data storage capacity.
• 5. Featuring a brand-new exterior design, the equipment boasts a more rational layout of both its overall structure and internal components. This design facilitates easier installation and maintenance; more importantly, it ensures a more stable testing process, more accurate results, and greater operational convenience.

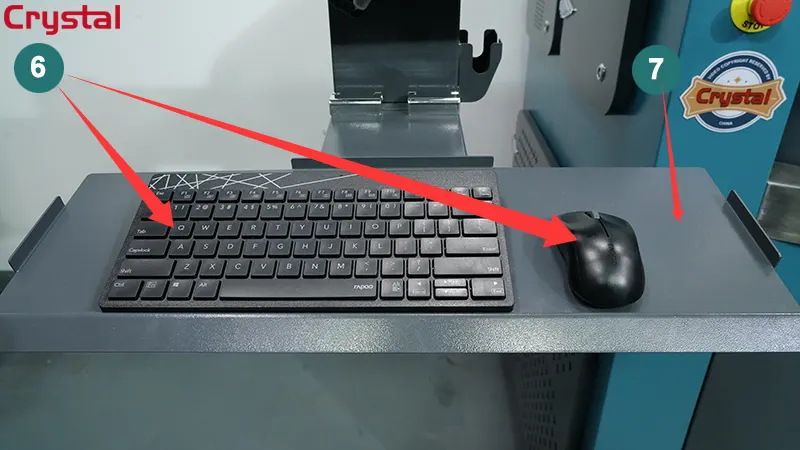

• 6. Equipped with a wireless keyboard and mouse for enhanced operational convenience.
• 7. Features a foldable keyboard tray, designed to facilitate both ease of use and convenient transport.

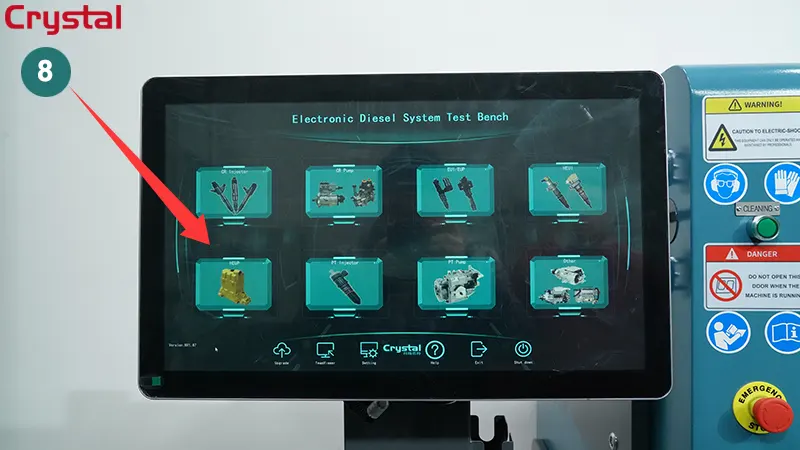

• 8. A newly developed, proprietary operating system that represents a comprehensive upgrade over its predecessor—enhancing aspects such as data comprehensiveness, operational fluidity, and ease of use.

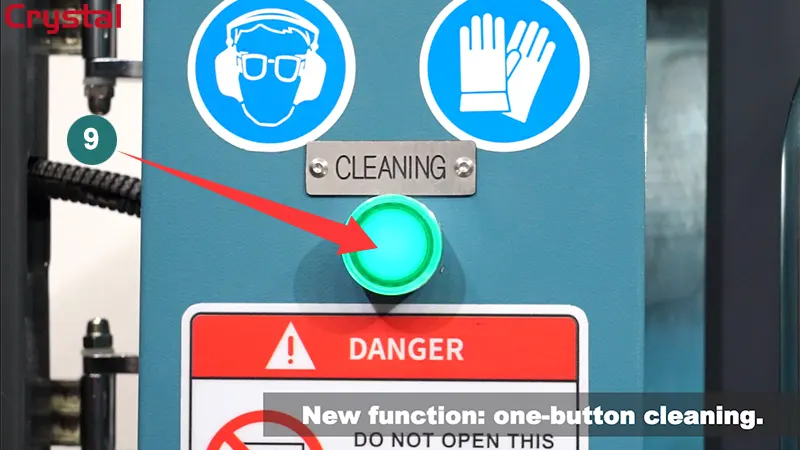

• 9. The addition of a "one-touch cleaning" function streamlines the operational workflow and significantly boosts testing efficiency.

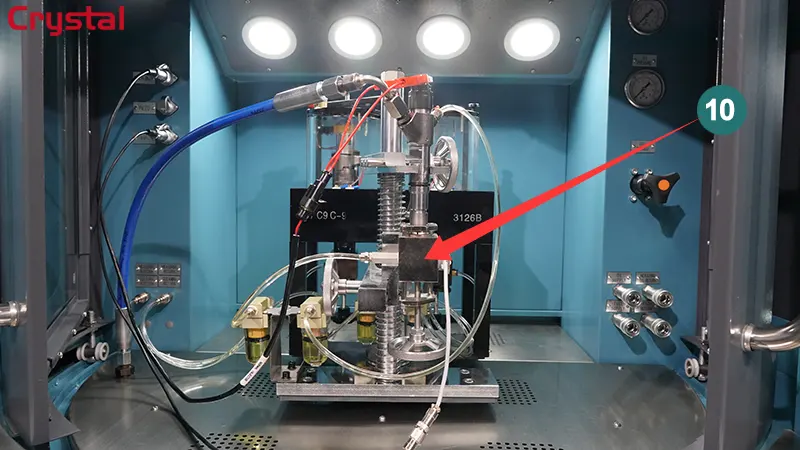

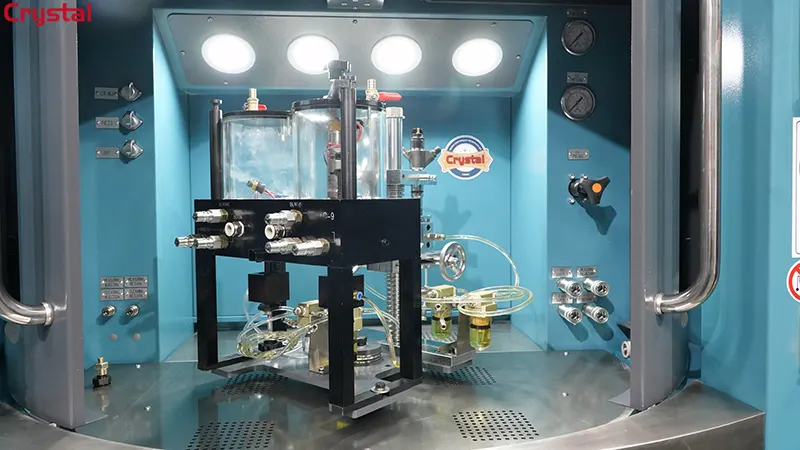

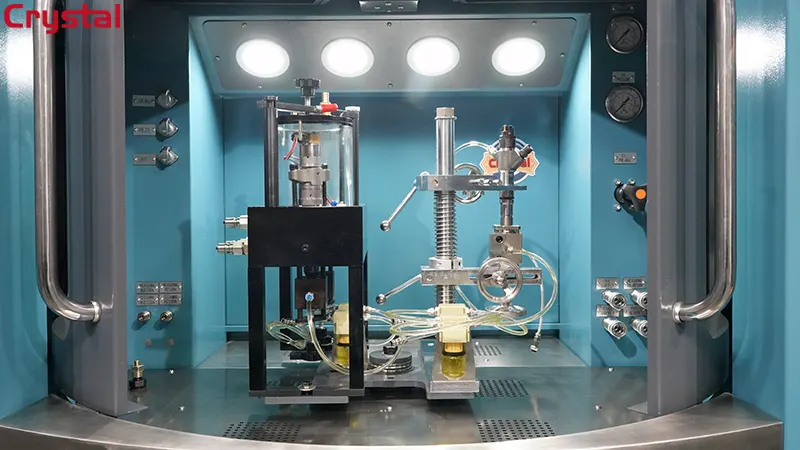

• 10. Fixtures for testing both common rail injectors and HEUI medium-pressure injectors are simultaneously mounted on a rotating platform, allowing for convenient manual switching between test modes. This design ensures user-friendly operation and reliable performance, while making efficient use of the available space within the test chamber.

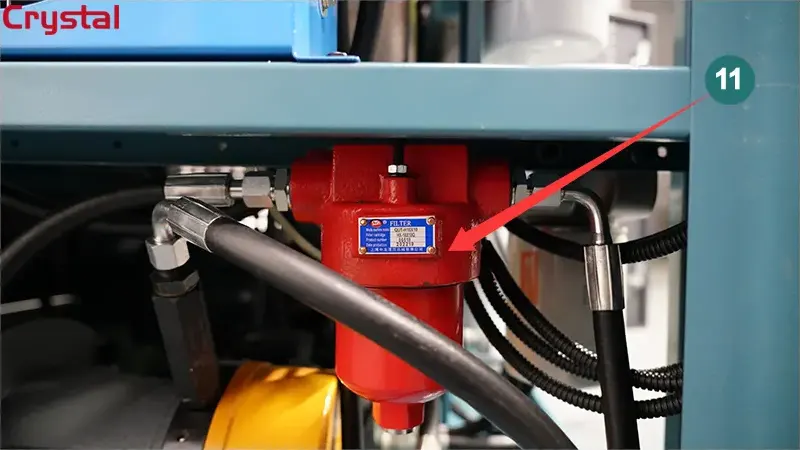

• 11. The hydraulic circuitry incorporates a high-pressure filter, effectively protecting key components within the hydraulic system (such as electro-hydraulic proportional valves, manual high-pressure pressure-regulating valves, etc.) as well as the test specimen (HEUI).

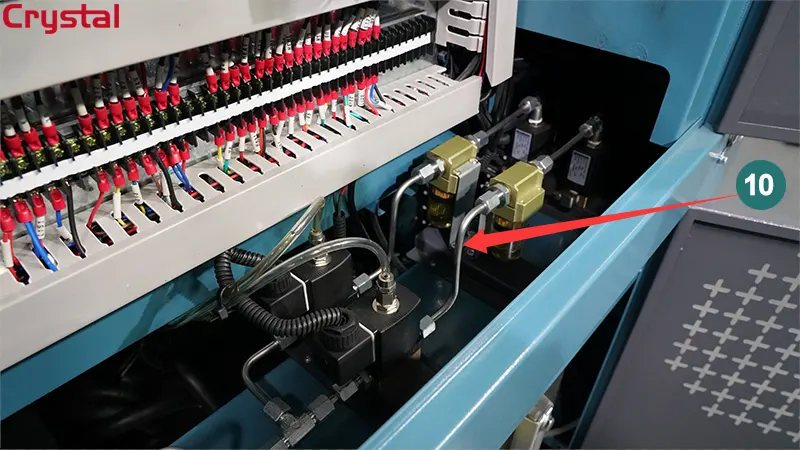

• 12. The main lines of the measurement system are constructed from industrial-grade 304 stainless steel tubing, ensuring greater stability in test data and enhanced reliability throughout the testing process.

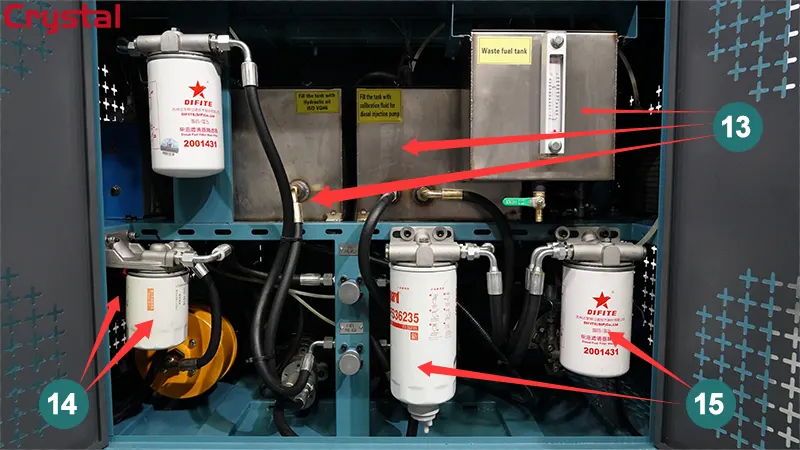

• 13. The fuel tank, hydraulic oil tank, and waste oil tank are all fabricated from industrial-grade 304 stainless steel, thereby eliminating the risk of test fluid contamination caused by material-related issues. Each tank is equipped with a liquid level switch, ensuring the operational safety of the equipment.
• 14. The test circuit for medium-pressure common rail injectors (HEUI) employs a three-stage filtration system, effectively ensuring that only hydraulic fluid meeting the specific test requirements enters the injector under test.
• 15. The test circuit for electronically controlled high-pressure common rail injectors employs a three-stage filtration system, effectively ensuring that only fuel meeting the specific test requirements enters the injector under test.

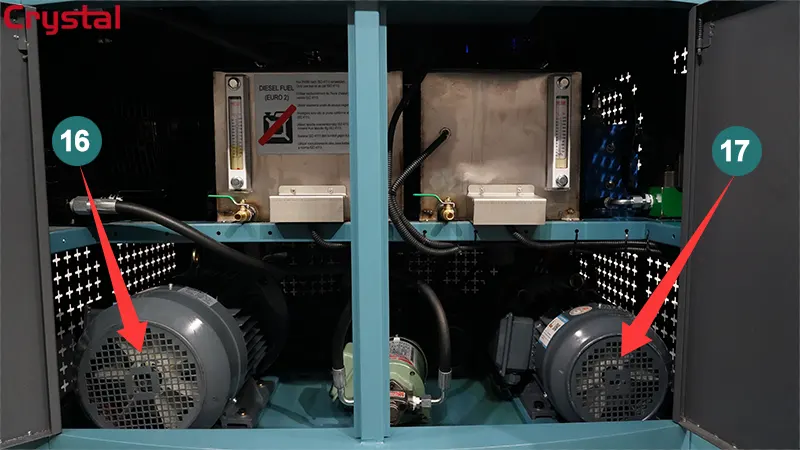

• 16. The drive motor for the high-pressure common rail injector test utilizes the renowned domestic brand Xuzhou Tongyi Motor, with a power output of 5.5 KW.
• 17. The drive motor for the HEUI test utilizes the renowned domestic brand Xuzhou Tongyi Motor, with a power output of 4 KW.

Parameter

Item	CR518-PRO Specification
Power of CP3 motor:	5.5KW
Max. pressure of common rail system:	2000MPa
Injector fuel path filtration accuracy:	3-5μ
Fuel tank capacity:	44L
Heating power for fuel:	1KW
Power of HEUI pump motor:	4KW
Hydraulic oil pressure:	24MPa
Max. pressure of fuel supply:	8Bar
Max. fuel supply flow of HEUI pump:	6L/Min
Hydraulic oil tank capacity:	38L
Noise level:	< 75dB
Test tank volume:	40L
Machine size:	470/540Kg
Machine size:	1200*1100*1660mm
