HCR-318

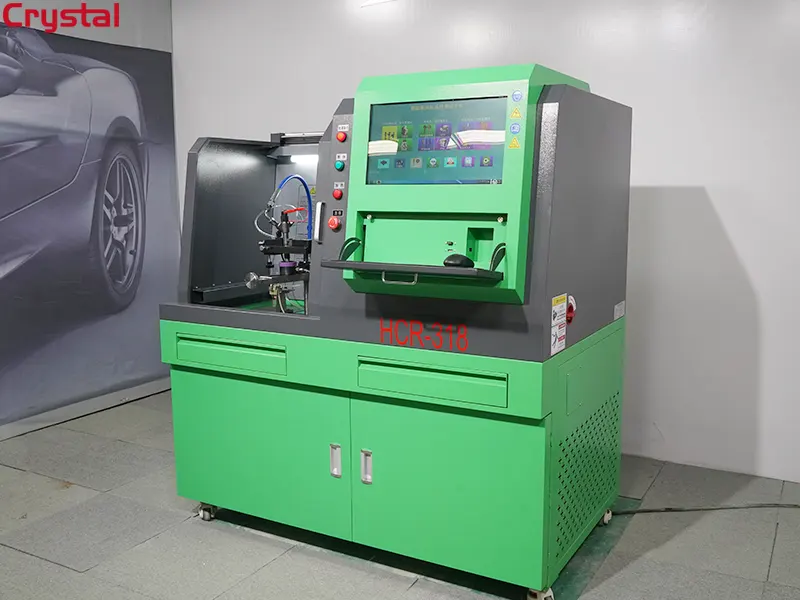

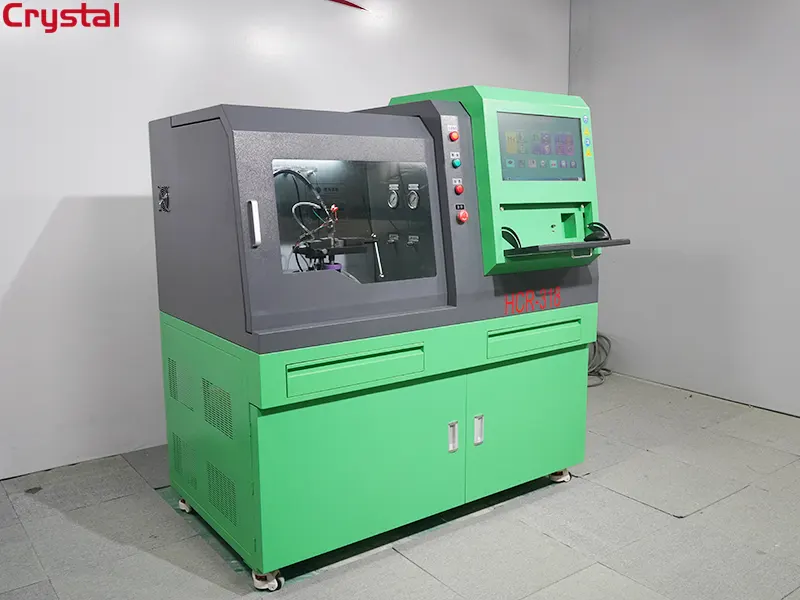

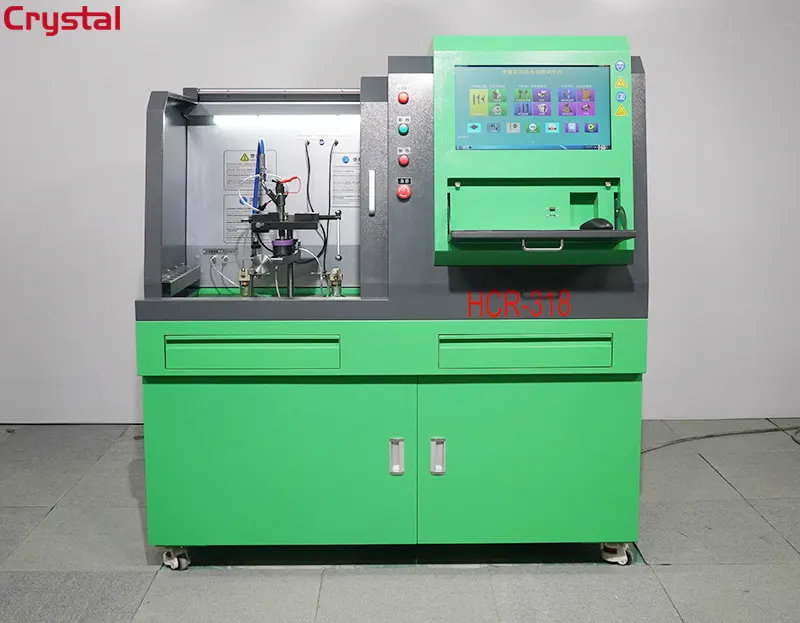

HCR-318 diesel high pressure common rail electronic control injector test bench: adopts a fully automatic control system, which can easily test the electronic control common rail injectors (including piezoelectric common rail injectors) . It Can test including Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins (Dongkang, Fukang) and other thousands of types of electronic control injectors, the test data is complete.

Functions:

• 1.Electric control common rail injector brands that can be tested: Bosch, Denso, Delphi, Caterpillar, Cummins, Simens.
• 2. It can accurately and automatically test the high-pressure tightness, full-load fuel injection volume, fuel return volume, discharge point fuel injection volume, idle fuel injection volume, pre-injection volume, and pre-injection fuel return volume of the electronically controlled common rail injector.
• 3. It can automatically generate fuel quantity correction codes for electronically controlled common rail injectors: QR, IQA, IMA, ISA, c2i, c3i, (VD0) ICC.
• 4. Armature lift test of the solenoid valve of the injector.
• 5. Electric control common rail injector opening pressure test.
• 6. Electric control common rail injector open pulse width test.
• 7.Electronic control common rail injector response time test.
• 8.Test of resistance value and inductance value of solenoid valve of electronically controlled common rail injector.
• 9. It can manually edit the injection characteristics of the injector to be tested.
• 10. The test process can be selected according to the actual situation, and the test data report can be automatically generated.

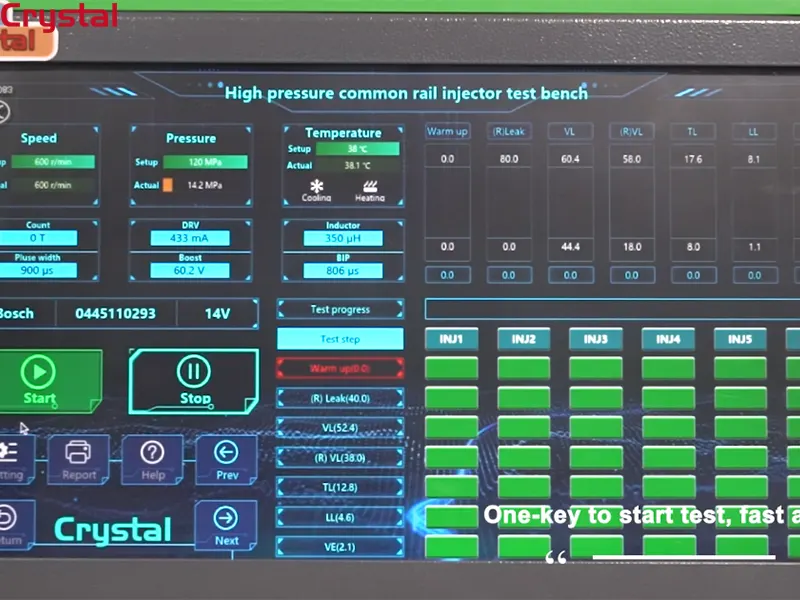

• 11. It can display 6 sets of test data at the same time, which is convenient for data comparison.
• 12. Judging the damaged parts of the electrically controlled common rail injector by itself according to the information of fuel quantity at various working points and interface prompts.

Configuration

• 1.High-precision fuel volume measurement system: high-precision gear flow meter.
• 2. Machine’s computer stores more than 3000 kinds of standard data of electronically controlled common rail injectors.

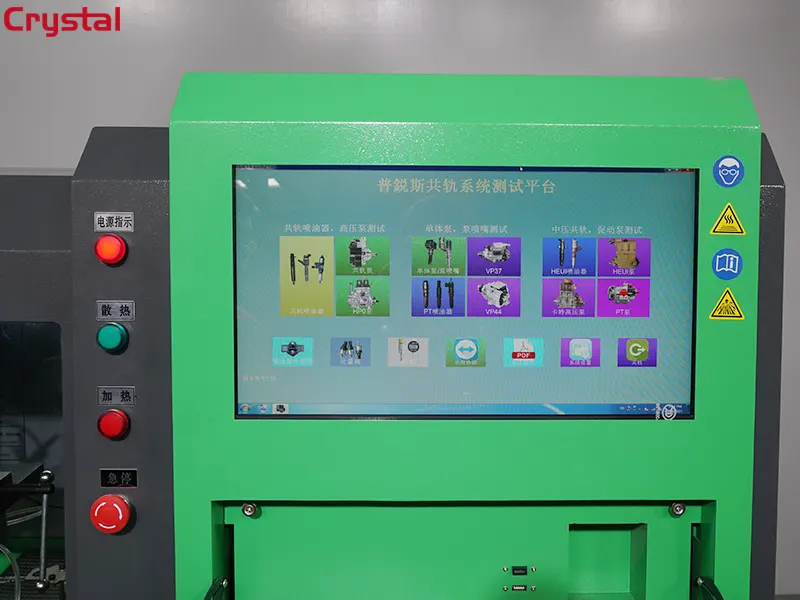

• 3. Well-known brand 19-inch LCD monitor.
• 4. Independent research and development of electronically controlled common rail injector control system (with remote control service, free upgrade, WIFI connection, etc.).
• 5. Automatic test fuel temperature control system: heater and forced circulation air cooling system.

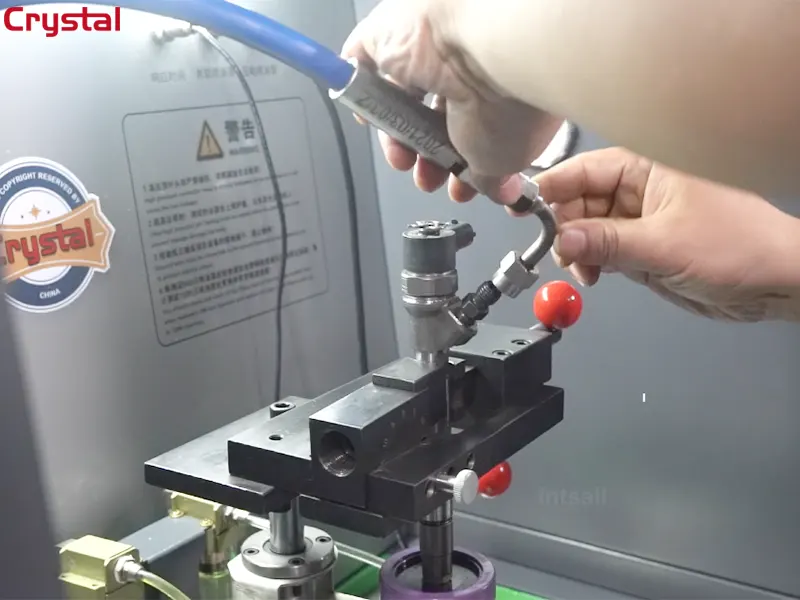

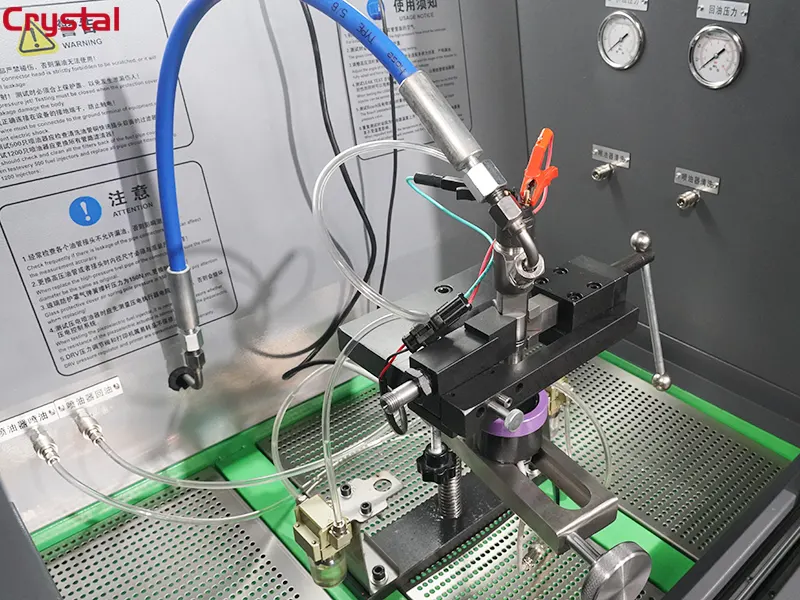

• 6. Equipped with universal fixtures, suitable for clamping various types of electronically controlled common rail injectors, connecting special wiring harnesses and special joints for fuel supply and return, etc.
• 7. Accurate rail pressure acquisition system: Bosch rail pressure sensor and Bosch common rail pipe.
• 8. Precise rail pressure control system: Bosch high pressure proportional control valve (PCV valve).
• 9. Low pressure fuel supply secondary filtration system: 3-5μ filtration accuracy.
• 10. The protective door observation window adopts rein tempered protective glass.
• 11. The measuring fuel circuit adopts a two-stage filter system.
• 12. High pressure common rail pump BoschCP3.3.
