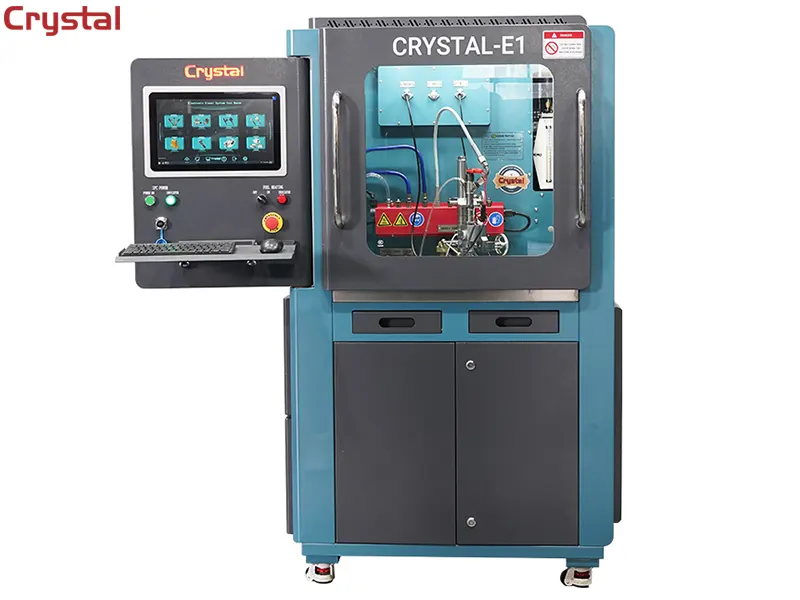

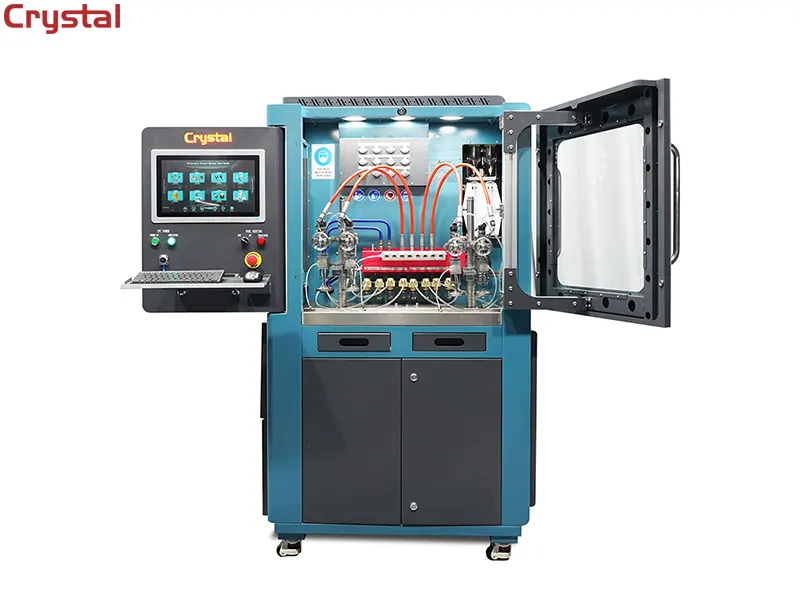

CRYSTAL-E1

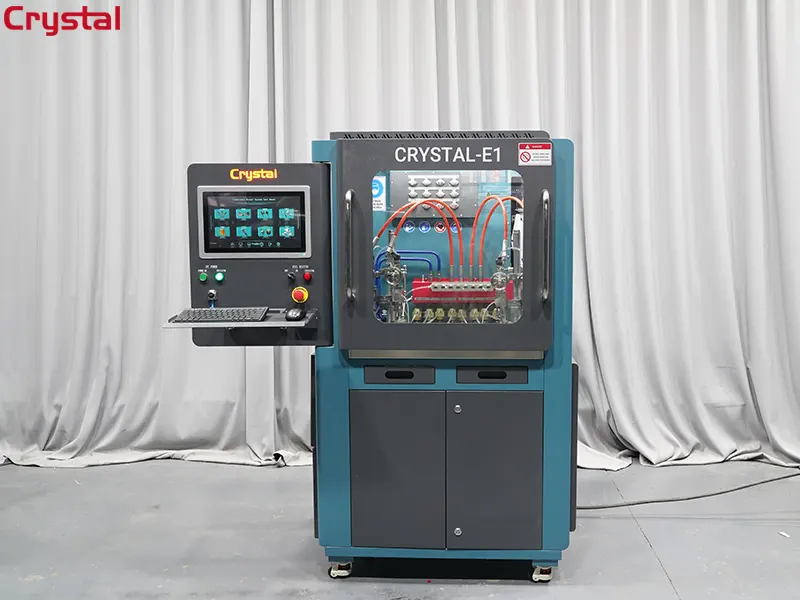

The CRYSTAL-E1 new generation high pressure common rail injector test bench is a special equipment for testing high pressure common rail injectors that meet the requirements of high rail pressure, high precision and high stability.

CRYSTAL-E1 high-pressure common rail injector test bench: adopts a fully automatic control system, a fully upgraded casing structure and appearance, a fully upgraded high-pressure pressure building system, complete data, and timely free updates and upgrades to meet market needs.

Parameters:

Items	CRYSTAL-E1
Power Supply:	380V/3-phase (other voltages optional)
Main Motor Power:	7.5kW (2500bar rail pressure configuration) / 5.5kW (2000bar rail pressure configuration)
Oil Temperature Control:	Heater and forced circulation air cooling system
Temperature Control Range:	40oC ±2oC
High-Pressure Common Rail Pump:	BOSCH CP4.2 (2500bar rail pressure configuration) BOSCH CP3.3 (2000bar rail pressure configuration)
Pressure Control Range:	0-2500bar (high-pressure configuration), 0-2000bar (normal high-pressure configuration)
Noise Level:	< 75dB
Test Fuel Tank Capacity:	40L
Machine Dimensions:	1050*745*1770mm
Packaged Dimensions:
Net Weight/Packing Weight:

Multiple configuration options:

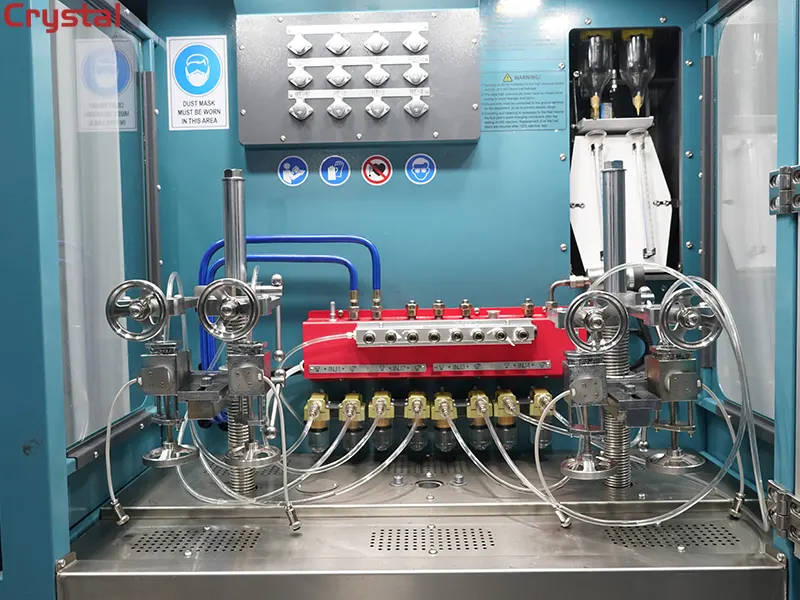

Optional: Automatic flip two-cylinder oil collecting tank + graduated cylinder measurement system

• 1. Test a single common rail injector (rail pressure control range: 0-2000 bar).
• 2. Test two common rail injectors simultaneously (rail pressure control range: 0-2000 bar)
• 3. Test four common rail injectors simultaneously (rail pressure control range: 0-2000 bar)
• 4. Test six common rail injectors simultaneously (rail pressure control range: 0-2000 bar)
• 5. Test a single common rail injector (rail pressure control range: 0-2500 bar)
• 6. Test two common rail injectors simultaneously (rail pressure control range: 0-2500 bar)
• 7. Test four common rail injectors simultaneously (rail pressure control range: 0-2500 bar)
• 8. Test six common rail injectors simultaneously (rail pressure control range: 0-2500 bar)

Highlights:

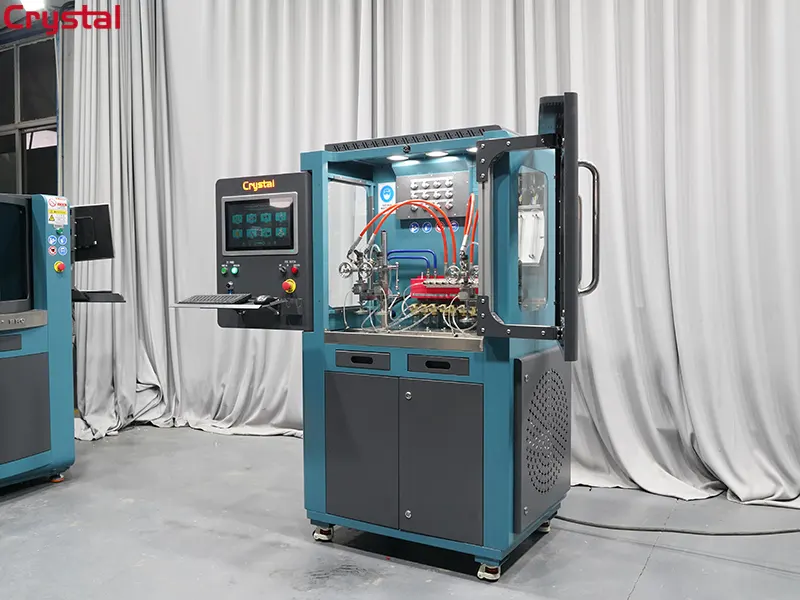

• 1. User-friendly operation station: A rotatable industrial all-in-one machine offers reliable and stable operation, as well as convenient and easy operation.
• 2. Fuel tank is made of 304 stainless steel.
• 3. The system is a self-developed, next-generation automatic testing system with high stability and reliability.

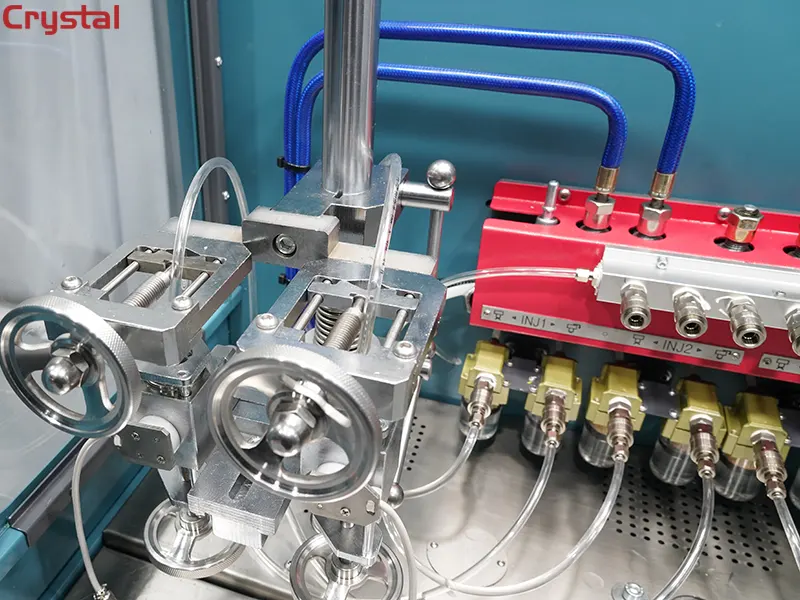

• 4. The injector fixture is a brand-new universal fixture.
• 5. Design: The ergonomically designed body makes operation and observation more comfortable, faster, and more convenient.

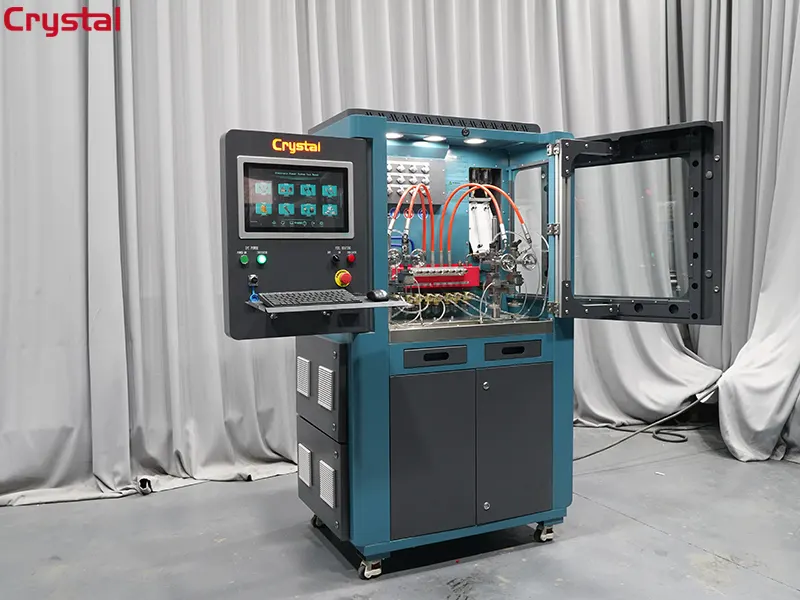

• 6. The fully open operating compartment door ensures convenient operation.
