CR318C

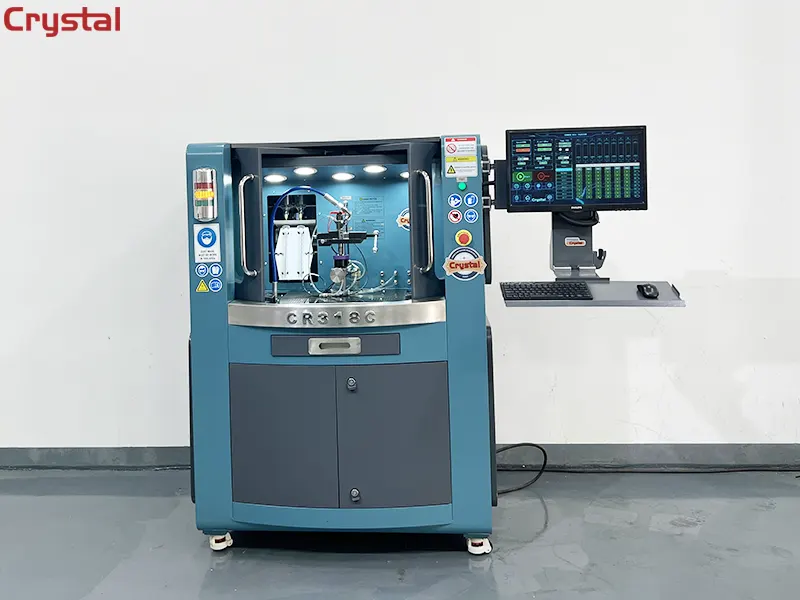

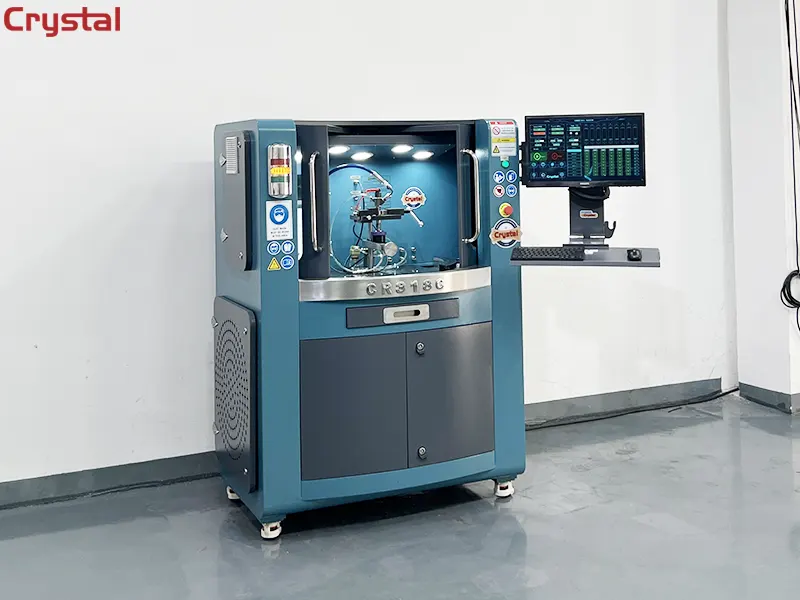

CR318C diesel high pressure common rail electronic control injector test bench: adopts a fully automatic control system, which can easily test the electronic control common rail injectors (including piezoelectric common rail injectors) . It Can test including Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins (Dongkang, Fukang) and other thousands of types of electronic control injectors, the test data is complete.

Functions

• 1.Electric control common rail injector brands that can be tested: Bosch, Denso, Delphi, Caterpillar, Cummins, Simens.
• 2. It can accurately and automatically test the high-pressure tightness, full-load fuel injection volume, fuel return volume, discharge point fuel injection volume, idle fuel injection volume, pre-injection volume, and pre-injection fuel return volume of the electronically controlled common rail injector.
• 3. It can automatically generate fuel quantity correction codes for electronically controlled common rail injectors: QR, IQA, IMA, ISA, c2i, c3i, (VD0) ICC.
• 4. Armature lift test of the solenoid valve of the injector.
• 5. Electric control common rail injector opening pressure test.
• 6. Electric control common rail injector open pulse width test.
• 7. Electronic control common rail injector response time test.
• 8. Test of resistance value and inductance value of solenoid valve of electronically controlled common rail injector.
• 9. It can manually edit the injection characteristics of the injector to be tested.
• 10. The test process can be selected according to the actual situation, and the test data report can be automatically generated.
• 11. It can display 6 sets of test data at the same time, which is convenient for data comparison.
• 12. Judging the damaged parts of the electrically controlled common rail injector by itself according to the information of fuel quantity at various working points and interface prompts.

Configuration

• 1. High-Precision Fuel Measurement System: High-precision gear flow meter.

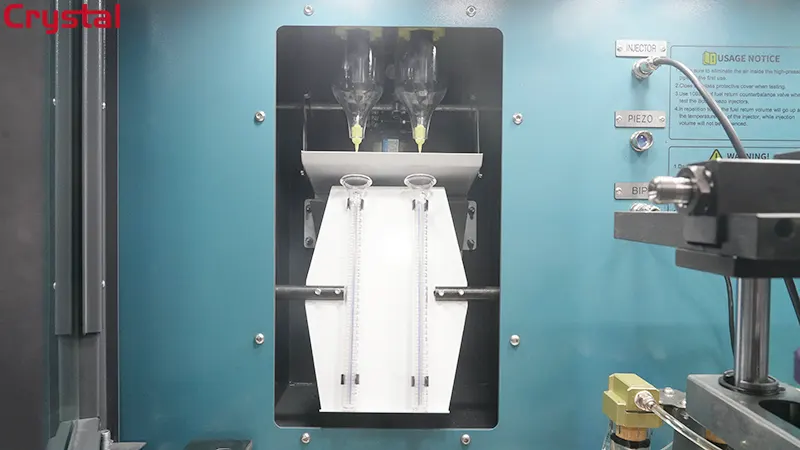

• 2. Graduated Cylinder Measurement System: Automatic-tilting fuel collection tank.
• 3. The device's internal computer host stores standard data for over 7,000 types of electronically controlled common rail injectors.

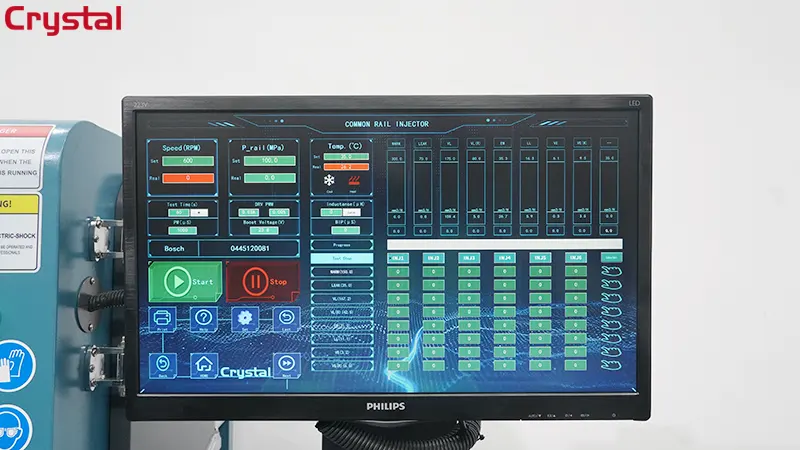

• 4. Philips 21.5-inch LCD monitor.

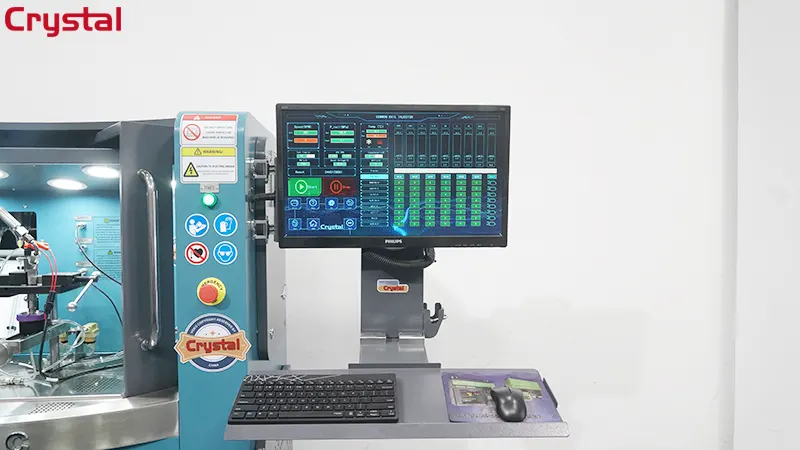

• 5. Independently developed, brand-new control system for electronically controlled common rail injectors (featuring functions such as remote control, remote service, free software updates, and Wi-Fi connectivity), offering smoother operation, greater user convenience, and enhanced system stability.
• 6. Test Oil Automatic Temperature Control System: Heater and forced-circulation air-cooling system.

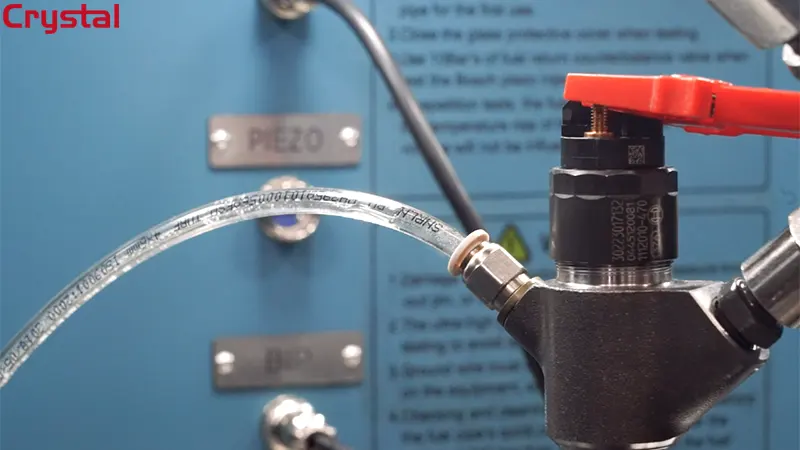

• 7. Equipped with a universal fixture suitable for clamping various models of electronically controlled common rail injectors, along with dedicated wiring harnesses, fuel supply and return connectors, etc.
• 8. Precise Rail Pressure Acquisition System: Bosch rail pressure sensor and Bosch common rail pipe.
• 9. Precise Rail Pressure Control System: Bosch high-pressure proportional control valve (PCV valve).
• 10. Low-Pressure Fuel Supply Three-Stage Filtration System: 3–5μm filtration precision.
• 11. The observation window on the protective door features reinforced tempered safety glass.
• 12. Measurement Circuit Three-Stage Filtration System.
• 13. High-Pressure Common Rail Pump: Bosch CP3.3 .
